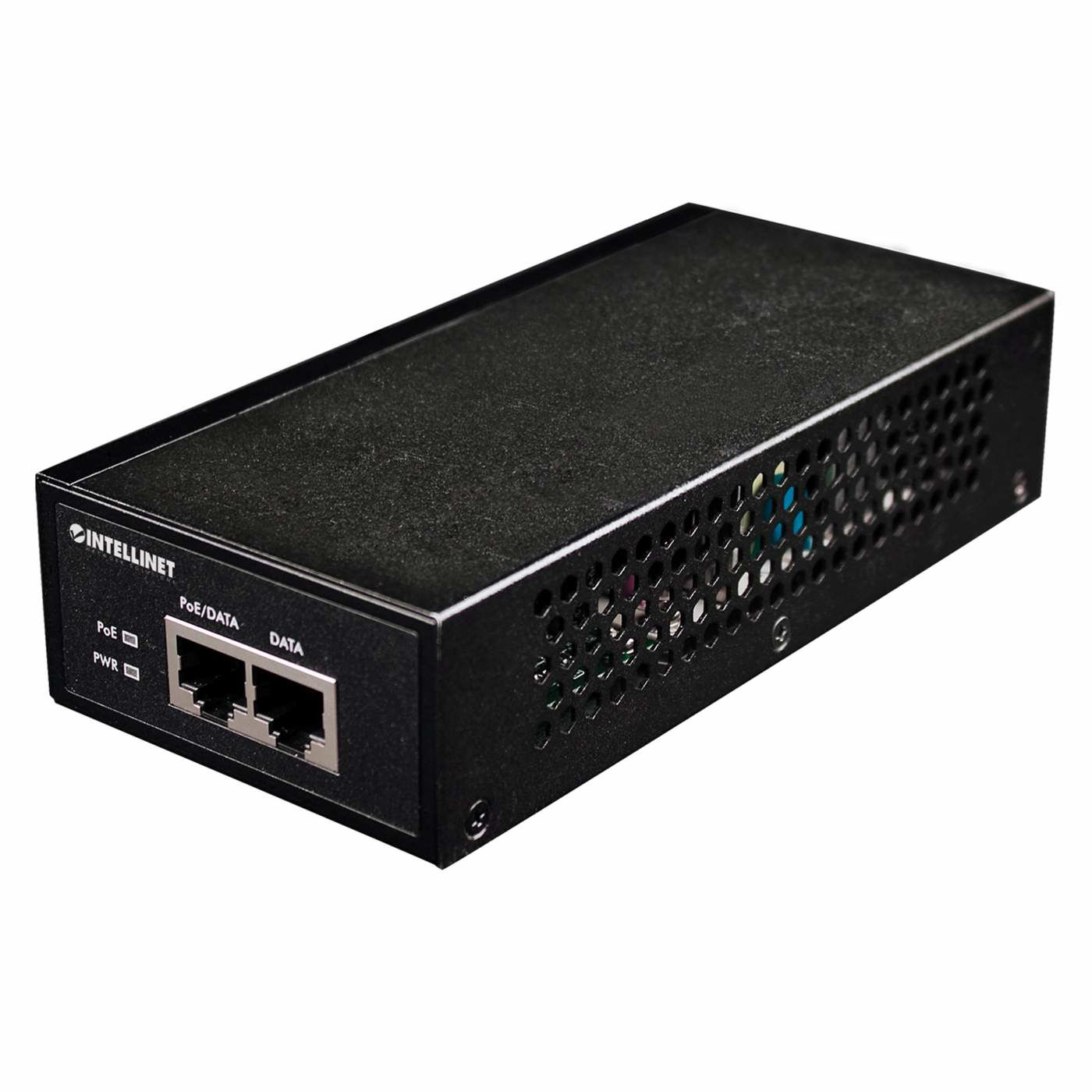

Intellinet Gigabit High-Power PoE+ Injector, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE)
Brand: Intellinet · SKU: 560566 · MPN: 560566 · Category: Components
Intellinet Gigabit High-Power PoE+ Injector, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Cat5, Cat5e, Black, Metal
Specifications
| Depth | 154 mm |
|---|---|
| Width | 72 mm |
| Height | 35 mm |
| Manual | Yes |
| Weight | 790 g |
| Certification | FCC Class A Subpart B, CE, RoHS, UKCA, NDAA |
| Input voltage | 100 - 240 V |
| LED indicators | PoE, Power |
| Product colour | Black |
| Housing material | Metal |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Cable types supported | Cat5, Cat5e |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Power consumption (max) | 42 W |
| Power protection features | Over voltage, Overload, Short circuit |
| Storage temperature (T-T) | -20 - 55 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Harmonized System (HS) code | 85044095 |
| Number of products included | 1 pc(s) |
| Operating temperature (T-T) | 5 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 790 g |
| Dimensions | 72 mm x 154 mm x 35 mm |
Product Description
Reduce costs by using existing Cat5 cable to provide both power and data. The Intellinet Network Solutions 1-Port Gigabit High-Power PoE+ Injector allows you to connect your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The PoE Injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts. That's enough for even power-hungry PoE devices. Reduce Wiring Costs No need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing Cat5 cabling to deliver DC power as well as transfer data. Protect Your Equipment Now that you are running DC power to your networked equipment through the Cat5e/6 cabling, you need to be sure that the products are protected from power problems. The PoE Injector was designed to protect equipment from short circuits (short GRND), current overloads and high voltages.
Key Features
Intellinet Gigabit High-Power PoE+ Injector, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE). Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. Product colour: Black, Housing material: Metal, LED indicators: PoE, Power. Input voltage: 100 - 240 V, Power consumption (max): 42 W. Compliance certificates: CE, RoHS, Federal Communications Commission (FCC), Certification: FCC Class A Subpart B, CE, RoHS, UKCA, NDAA. Width: 72 mm, Depth: 154 mm, Height: 35 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intellinet Gigabit High-Power PoE+ Injector, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) (560566) is 100% genuine Intellinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intellinet Gigabit High-Power PoE+ Injector, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intellinet Gigabit High-Power PoE+ Injector, 1 x 30 W, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 560566.
