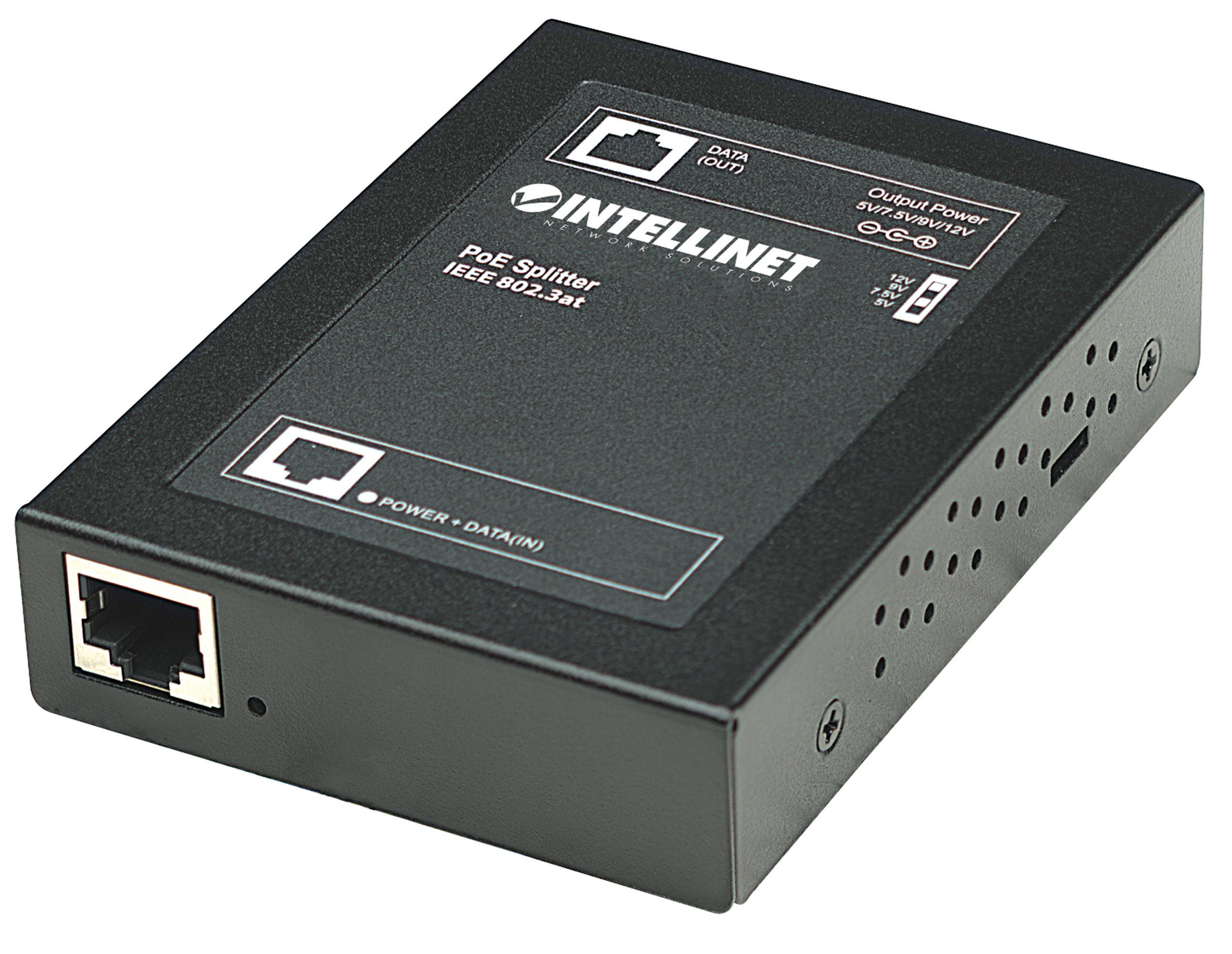

Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage
Brand: Intellinet · SKU: 560443 · MPN: 560443 · Category: Components
Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage, IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, 10Base-T, 100Base-TX, Cat5, Black, Metal, Female. Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage (part number 560443) is an enterprise components product available from Server Tech Central. Key specifications include depth 102 mm, width 74 mm, height 22 mm, weight 445 g, output power 25.4 W, certification FCC Class A, CE, cable standard Cat5, output voltage 12 V. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 102 mm |
|---|---|
| Width | 74 mm |
| Height | 22 mm |
| Weight | 445 g |
| Output power | 25.4 W |
| Certification | FCC Class A, CE |
| Cable standard | Cat5 |
| Output voltage | 12 V |
| Product colour | Black |
| Cables included | AC |
| Connector gender | Female |
| Housing material | Metal |
| Quantity per pack | 1 pc(s) |
| Cabling technology | 10Base-T, 100Base-TX |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -20 - 90 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 445 g |
| Dimensions | 74 mm x 102 mm x 22 mm |
Product Description
Deliver Power over Ethernet to remote devices. The INTELLINET NETWORK SOLUTIONS PoE+ Splitter allows you to deliver both data and electrical power to non-PoE Ethernet-enabled products using the Cat5 Ethernet cable. Using the PoE Splitter, you can take advantage of Power over Ethernet and place Ethernet-enabled products, such as Network Cameras and Wireless Access Points*, where power outlets are not readily available. Simplify Installation for an Ethernet-based Device Having to manage only an Ethernet cable simplifies the physical installation of the device. Without having to worry about the availability of a power source, you can mount Ethernet-enabled products on a ceiling or outdoors, up to 100m (328 feet)** from a power source. The PoE Splitter is simple to install and requires no tools or software. 802.3af Compliant Power over Ethernet The PoE Splitter can be used to complement any PoE injector unit or midspan switch to provide small to medium-sized businesses a complete end-to-end PoE solution. This unit supports 802.3af and 802.3at, ensuring compatibility with other 802.3af/t PoE-compliant injector units or PSE switches. Adjustable Power Output During the setup, the PoE Splitter can be set to power any compatible 5 V, 7.5 V, 9 V or 12 V Ethernet-enabled device via the volt selector located on the side. * Contact your INTELLINET NETWORK SOLUTIONS reseller for ordering information. ** Maximum distance per 802.3u specifications.
Key Features
Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Cabling technology: 10Base-T, 100Base-TX, Cable standard: Cat5. Connector gender: Female. Compliance certificates: CE, Federal Communications Commission (FCC), Certification: FCC Class A, CE. Width: 74 mm, Depth: 102 mm, Height: 22 mm. Cables included: AC, Quantity per pack: 1 pc(s)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage (560443) is 100% genuine Intellinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intellinet Power over Ethernet (PoE+) Splitter, IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 560443.
