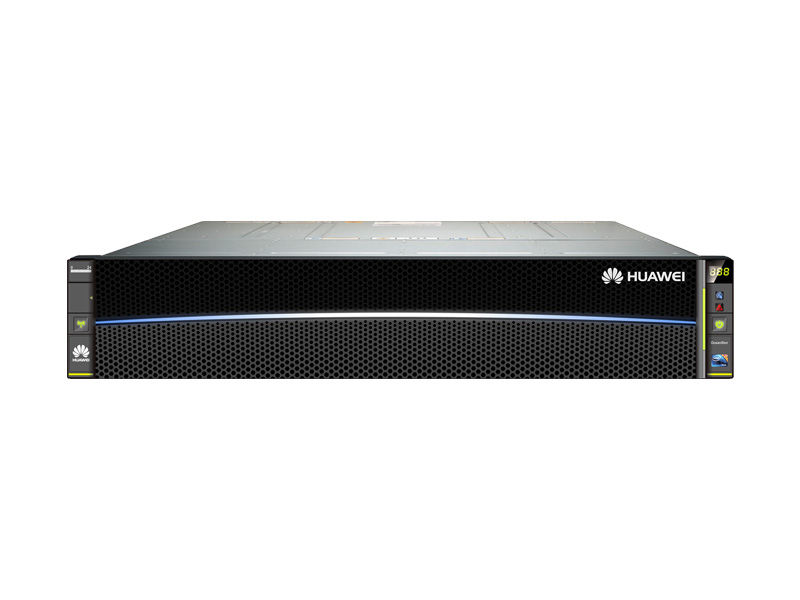

5300V3-64G-AC-2, Huawei OceanStor 5300 V3 Storage, 2U Dual Controllers/64GB RAM/8xGE Port
Brand: Huawei · SKU: 5300V3-64G-AC-2 · MPN: 5300V3-64G-AC-2 · Category: Components
Huawei OceanStor 5300 V3(2U,Dual Controllers,AC,64GB,8*GE,25*2.5",SPE33C0225) 5300V3-64G-AC-2
Specifications
| Model | 5300V3-64G-AC-2 |
|---|---|
| Weight | 52 kg |
| Disk Types | SSD, SAS, NL-SAS |
| Port Types | 1 Gbit/s Ethernet, 10 Gbit/s FCoE, 10 Gbit/s TOE, 16 Gbit/s FC, 56 Gbit/s InfiniBand, SAS 3.0 (back-end, 4 x 12 Gbit/s per port) |
| Gateway Mode | Supported |
| Power Supply | AC: 100 V to 240 V; DC: 192 V to 288 V or -48 V to -60 V |
| System Cache | 32GB to 256GB (expanded with the number of controllers) |
| Max. Raw Capacity | 1,800TB (all-SSD, dual-controller configuration) |
| Operating Humidity | 5% RH to 90% RH |
| Storage Processors | Multi-core processors |
| Operating Temperature | 5°C to 40°C at altitudes below 1,800 m (5,905.44 ft); 5°C to 35°C at altitudes from 1,800 m (5,905.44 ft) to 3,000 m (9,842.40 ft) |
| Supported RAID Levels | RAID 0, 1, 3, 5, 6, 10, 50 |
| Maximum Number of LUNs | 4,096 |
| Virtualization Features | Heterogeneous virtualization for unified management of mainstream storage resources; block virtualization for balanced data distribution and quick fault recovery; supports VMware, Citrix, Hyper-V; value-added features include VMware VAAI support and integration with vSphere and vCenter |
| Max. Number of Controllers | 8 |
| Supported Storage Protocols | Fibre Channel, FCoE, iSCSI, InfiniBand, NFS, CIFS, HTTP, FTP |
| Key Software Features (O&M Tools) | UltraPath (multipathing management), Cloud Service (remote maintenance and management), BCManager (disaster recovery management software), DeviceManager (single-device management), eSight (multi-device, cross-field management) |
| Maximum Capacity of a Single File | 256TB |
| Maximum Number of Snapshots (LUN) | 2,048 |
| Key Software Features (Data Protection) | HyperSnap (snapshot), HyperCopy (LUN copy), HyperClone (clone), HyperMirror (volume mirror), HyperReplication (remote replication), HyperMetro (active-active storage arrays), HyperVault (integrated backup) |
| Key Software Features (Smart Management) | SmartQoS, SmartPartition, SmartCache, SmartTier, SmartThin, SmartMotion, SmartMulti-Tenant, SmartMigration, SmartCompression, SmartDedupe, SmartQuota, HyperLock (WORM), SmartErase (data destruction) |
| Dimensions (2U Disk Enclosure, H x W x D) | 86.1mm x 447mm x 490mm (3.39in x 17.60in x 19.29in) |
| Dimensions (4U Disk Enclosure, H x W x D) | 175mm x 447mm x 490mm (6.89in x 17.60in x 19.29in) |
| Maximum Number of Snapshots per File System | 2,048 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
