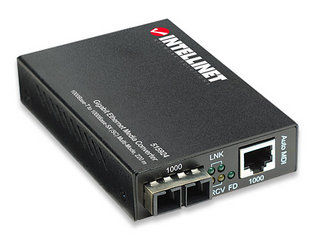

Intellinet 515924 network media converter 850 nm
Brand: Intellinet · SKU: 515924 · MPN: 515924 · Category: Components
Intellinet 515924, IEEE 802.3ab, IEEE 802.3z, 1000Base-T, 1000Base-SX, 550 m, 850 nm, 50/125,62.5/125 µm, 5 V. Intellinet 515924 network media converter 850 nm (part number 515924) is an enterprise components product available from Server Tech Central. Key specifications include manual Yes, weight 240 g, internal No, wavelength 850 nm, input current 1.4 A, input voltage 5 V, led indicators Yes, cabling technology 1000Base-T, 1000Base-SX. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Manual | Yes |
|---|---|
| Weight | 240 g |
| Internal | No |
| Wavelength | 850 nm |
| Input current | 1.4 A |
| Input voltage | 5 V |
| LED indicators | Yes |
| Cabling technology | 1000Base-T, 1000Base-SX |
| Dimensions (WxDxH) | 74 x 102 x 22 mm |
| Networking standards | IEEE 802.3ab, IEEE 802.3z |
| External power adapter | Yes |
| Maximum transfer distance | 550 m |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating temperature (T-T) | 0 - 60 °C |
| Power consumption (typical) | 5.2 W |
| Operating relative humidity (H-H) | 10 - 90% |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Warranty | 3-Year Warranty |
| Weight | 240 g |
Product Description
Gigabit Ethernet Media Converter The INTELLINET NETWORK SOLUTIONS Gigabit Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fiber Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before – only now it can support both copper and fiber mediums. Expands the Size of an Existing Network Provides fiber connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers. Enhances the Distance between Networking Devices Connecting the converter to fiber segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fiber-based node or networking device. Cabling Flexibility Network managers can install fiber cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19" rack-mountable chassis.
Key Features
Intellinet 515924. Networking standards: IEEE 802.3ab, IEEE 802.3z, Cabling technology: 1000Base-T, 1000Base-SX. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber cable diameters supported (core/cladding): 50/125,62.5/125 µm. Input voltage: 5 V, Input current: 1.4 A, Power consumption (typical): 5.2 W. Weight: 240 g. Dimensions (WxDxH): 74 x 102 x 22 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intellinet 515924 network media converter 850 nm (515924) is 100% genuine Intellinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intellinet 515924 network media converter 850 nm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intellinet 515924 network media converter 850 nm compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 515924.
