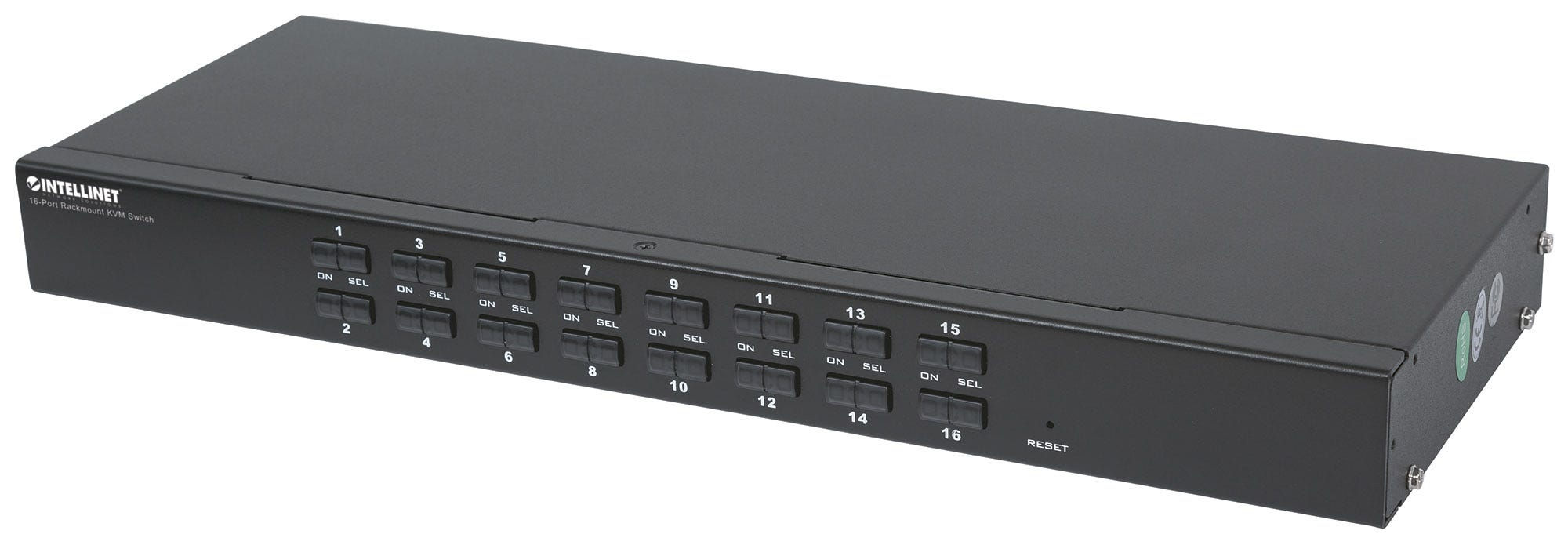

Intellinet 16-Port Rackmount KVM Switch, Combo USB + PS/2, On-Screen Display, Cables included
Brand: Intellinet · SKU: 506496 · MPN: 506496 · Category: Data Center
Intellinet 16-Port Rackmount KVM Switch, Combo USB + PS/2, On-Screen Display, Cables included, 1600 x 900 pixels, HD, Rack mounting, 0.5 W, Black. Intellinet 16-Port Rackmount KVM Switch, Combo USB + PS/2, On-Screen Display, Cables included (part number 506496) is an enterprise kvm switches product available from Server Tech Central. Key specifications include depth 440 mm, width 155 mm, height 45 mm, manual Yes, weight 6 kg, hd type HD, power source DC, certification FCC B, CE, RoHS. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 440 mm |
|---|---|
| Width | 155 mm |
| Height | 45 mm |
| Manual | Yes |
| Weight | 6 kg |
| HD type | HD |
| Power source | DC |
| Certification | FCC B, CE, RoHS |
| Console ports | PS/2, USB A, VGA (D-Sub) |
| Input current | 1 A |
| Input voltage | 9 V |
| Rack mounting | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Mouse port type | USB, PS/2 |
| Video bandwidth | 350000 Hz |
| Video port type | VGA |
| Built-in display | No |
| Housing material | Metal |
| Keyboard port type | USB, PS/2 |
| Maximum resolution | 1600 x 900 pixels |
| Storage temperature (T-T) | -20 - 60 °C |
| Console USB ports quantity | 5 |
| VGA (D-Sub) ports quantity | 16 |
| Warranty | 3-Year Warranty |
| Weight | 6 kg |
| Dimensions | 155 mm x 440 mm x 45 mm |
Product Description
The INTELLINET NETWORK SOLUTIONS KVM Switch is an 16-port USB PS/2 rackmount device designed for computer/server management on a central console in corporate, factory and campus computing environments. It provides an on-screen display (OSD) for intuitive KVM switching operations, and its cascading feature can help upscale the number of connected computers. The switch offers a dedicated controller for each port to keep the mouse and keyboard alive even when the KVM switch is not powered on. Excellent video quality with minimal degradation is guaranteed even when daisy-chained up to 64 units. Perfect keyboard/mouse emulation provides high compatibility with PCs, servers and various operating systems._x000D_ _x000D_ USB and PS/2 Interface Support_x000D_ Supports the USB and the PS/2 interface standard on both console side and PC side. This is especially useful in an environment with mixed equipment; e.g., older computers with PS/2 connections and newer models featuring USB ports._x000D_ _x000D_ Connection Cables Included_x000D_ The INTELLINET NETWORK SOLUTIONS KVM Switch, model 506496, comes with all the required connection cables included, eliminating the guessing game of which cables to choose for the product. All you need is included in the packaging. It cannot be any easier._x000D_ _x000D_ OSD Support_x000D_ With the integrated on-screen display (OSD), operating and programming the KVM switch options becomes a breeze. Many users will find the intuitive menu-driven operation indispensable for a truly convenient KVM switching experience. _x000D_ _x000D_ Professional Features_x000D_ The switch provides professional features such as Auto Logout, password protection, firmware upgrade and daisy-chaining (cascading). Its metal housing provides excellent shielding against electromagnetic interference and offers a sturdy protection needed to withstand accidental impact.
Key Features
Intellinet 16-Port Rackmount KVM Switch, Combo USB + PS/2, On-Screen Display, Cables included. Keyboard port type: USB, PS/2, Mouse port type: USB, PS/2, Video port type: VGA. HD type: HD, Maximum resolution: 1600 x 900 pixels, Video bandwidth: 350000 Hz. Product colour: Black, Housing material: Metal, Certification: FCC B, CE, RoHS. Power source: DC, Input voltage: 9 V, Input current: 1 A. Width: 155 mm, Depth: 440 mm, Height: 45 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intellinet 16-Port Rackmount KVM Switch, Combo USB + PS/2, On-Screen Display, Cables included (506496) is 100% genuine Intellinet hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intellinet 16-Port Rackmount KVM Switch, Combo USB + PS/2, On-Screen Display, Cables included includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intellinet 16-Port Rackmount KVM Switch, Combo USB + PS/2, On-Screen Display, Cables included compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 506496.
