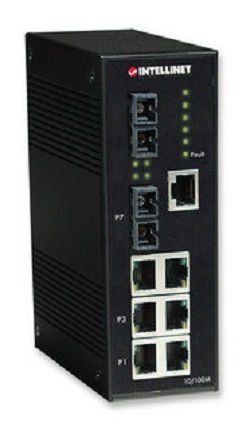

Intellinet 505673 network switch Black
Brand: Intellinet · SKU: 505673 · MPN: 505673 · Category: Networking
Intellinet 505673, Full duplex. Intellinet 505673 network switch Black (part number 505673) is an enterprise switches product available from Server Tech Central. Key specifications include depth 106.1 mm, width 52 mm, height 144.3 mm, weight 740 g, full duplex Yes, led indicators Yes, product colour Black, dc input voltage 12 - 48 V. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 106.1 mm |
|---|---|
| Width | 52 mm |
| Height | 144.3 mm |
| Weight | 740 g |
| Full duplex | Yes |
| Certification | FCC A, EN55022 A, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11, CE/EN60950, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6 |
| LED indicators | Yes |
| Product colour | Black |
| DC input voltage | 12 - 48 V |
| MAC address table | 8192 entries |
| Switching capacity | 5.6 Gbit/s |
| Fiber ports quantity | 2 |
| Networking standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 70 °C |
| Power consumption (typical) | 9 W |
| Supported data transfer rates | 10/100 |
| Operating relative humidity (H-H) | 5 - 95% |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Warranty | 3-Year Warranty |
| Weight | 740 g |
| Dimensions | 52 mm x 106.1 mm x 144.3 mm |
Product Description
The INTELLINET NETWORK SOLUTIONS Industrial Managed Fast Ethernet/Fiber Optic Rail Switch comes with six Ethernet ports and two fiber optic ports and is specially developed for industrial Ethernet applications. This DIN rail switch not only includes all the functions of an unmanaged switch, but also possesses powerful features such as port VLAN, Quality of Service and IGMP (Internet Group Management Protocol) snooping. With a Web-based configuration interface, it ensures an easy installation and management of your switches. It also uses a robust case, offering IP30-standard protection. The Industrial Managed Fast Ethernet Rail Switch provides powerful device redundancy, including a redundant Ethernet network (O-Ring) and redundant power inputs. It is the best solution to enhance your industrial networking automation. High-Standard Mechanical Design The INTELLINET NETWORK SOLUTIONS series of Industrial Ethernet products uses an IP30 case to provide a rugged and heat-resistant solution. The terminal block and ventilation holes are placed on the bottom side of each unit to reduce the chance of damage due to dust and moisture. And the compact, space-saving design is a benefit throughout the product’s life — from inventory storage and transportation to installation. Reliable Redundancy Industrial automation and control solutions demand high reliability. INTELLINET NETWORK SOLUTIONS understands that redundancy is critical in this environment. Triple DC power inputs and an AC-DC power adapter jack are provided for power redundancy. For network redundancy, the O-Ring technology enables self-recovery ability in less than 10 ms for network failures. Intelligent Network Management Versatile network management functions are provided, including Web and network management, such as SNMP and RMON. Network traffic can be optimized by VLAN or IGMP snooping. Bandwidth can be managed by port rate control to avoid abnormal broadcast storm. To enhance security, port access can be limited to a pre-defined MAC address table. And QoS (Quality of Service) is supported for traffic prioritization.
Key Features
Intellinet 505673. Basic switching RJ-45 Ethernet ports quantity: 6. Full duplex. MAC address table: 8192 entries, Switching capacity: 5.6 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE.... DC input voltage: 12 - 48 V
