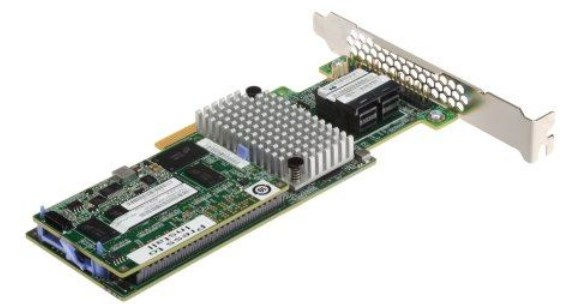

Lenovo 46C9110 RAID controller PCI Express x8 3.0 12 Gbit/s
Brand: Lenovo · SKU: 46C9110 · MPN: 46C9110 · Category: Components
Lenovo 46C9110, SAS, Serial ATA, PCI Express x8, 0, 1, 10, 12 Gbit/s, DDR3, 1866 MHz. Lenovo 46C9110 RAID controller PCI Express x8 3.0 12 Gbit/s (part number 46C9110) is an enterprise raid controllers product available from Server Tech Central. Key specifications include depth 168 mm, width 69 mm, height 15 mm, weight 99 g, raid levels 0, 1, 10, ssd support Yes, certification UL, cUL, IEC60950, EMC, FCC, TUV, CE, VCCI, BSMI, C-tick, KC, host interface PCI Express x8. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 168 mm |
|---|---|
| Width | 69 mm |
| Height | 15 mm |
| Weight | 99 g |
| RAID levels | 0, 1, 10 |
| SSD support | Yes |
| Certification | UL, cUL, IEC60950, EMC, FCC, TUV, CE, VCCI, BSMI, C-tick, KC |
| Host interface | PCI Express x8 |
| Package weight | 320 g |
| Data transfer rate | 12 Gbit/s |
| Memory clock speed | 1866 MHz |
| S.M.A.R.T. support | Yes |
| Compatible products | Microsoft Windows Server 2008 R2 Microsoft Windows Server 2008, Datacenter x64 Edition Microsoft Windows Server 2008, Datacenter x86 Edition Microsoft Windows Server 2008, Enterprise x64 Edition Microsoft Windows Server 2008, Enterprise x86 Edition Microsoft Windows Server 2008, Web x64 Edition Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 5 Server with Xen x64 Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Enterprise Linux Server (SLES) 12 SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for x86 VMware vSphere 5.0 (ESXi) VMware vSphere 5.1 (ESXi) VMware vSphere 5.5 (ESXi) VMware vSphere 6.0 (ESXi) |
| Internal memory type | DDR3 |
| PCI Card form factor | Half-height (low-profile) |
| Internal mini-SAS ports | 2 |
| PCI Express slots version | 3.0 |
| Package dimensions (WxDxH) | 143 x 238 x 51 mm |
| Harmonized System (HS) code | 84733080 |
| Operating temperature (T-T) | 5 - 40 °C |
| Mac operating systems supported | Yes |
| Operating relative humidity (H-H) | 8 - 93% |
| Supported storage drive interfaces | SAS, Serial ATA |
| Windows operating systems supported | Yes |
| Warranty | 3-Year Warranty |
| Weight | 99 g |
| Dimensions | 69 mm x 168 mm x 15 mm |
Product Description
The ServeRAID M5210 and M5210e SAS/SATA Controllers are high performance 12 Gb SAS controllers for internal disk storage. They are part of the ServeRAID M Series family that offers a complete server storage solution consisting of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure. These products are optimized to deliver the performance that is demanded by the ever-growing I/O requirements of today's enterprises. The M5210 is a low profile PCIe adapter, and the M5210e is integrated in servers such as the x3750 M4 and x3650 M4 HD. The two controllers share a common set of upgrades, simplifying inventory management.
Key Features
Lenovo 46C9110. Supported storage drive interfaces: SAS, Serial ATA, Host interface: PCI Express x8. RAID levels: 0, 1, 10, Data transfer rate: 12 Gbit/s, Internal memory type: DDR3. Width: 69 mm, Depth: 168 mm, Height: 15 mm. PCI Card form factor: Half-height (low-profile)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Lenovo 46C9110 RAID controller PCI Express x8 3.0 12 Gbit/s (46C9110) is 100% genuine Lenovo hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Lenovo 46C9110 RAID controller PCI Express x8 3.0 12 Gbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Lenovo 46C9110 RAID controller PCI Express x8 3.0 12 Gbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 46C9110.
