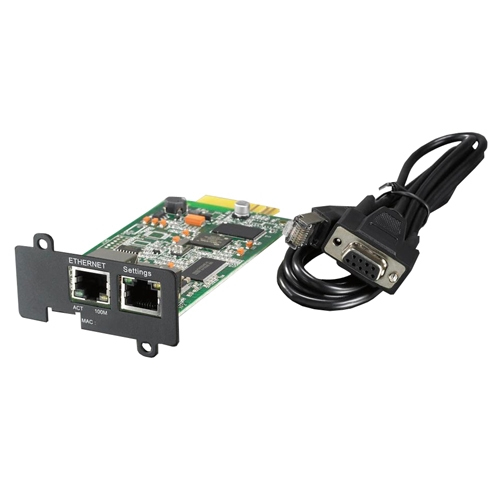

DELL 430-4101 network card Internal Ethernet 100 Mbit/s
Brand: DELL · SKU: 430-4101 · MPN: 430-4101 · Category: Components
DELL 430-4101, Internal, Wired, Ethernet, 100 Mbit/s, Green
Specifications
| Depth | 66 mm |
|---|---|
| Width | 132 mm |
| Height | 40.6 mm |
| Weight | 70.8 g |
| Internal | Yes |
| Interface | Ethernet |
| Ethernet LAN | Yes |
| Product colour | Green |
| Cables included | LAN (RJ-45) |
| Quantity per pack | 1 pc(s) |
| Cabling technology | 10/100BaseT(X) |
| Compatible products | DELL PowerEdge 1950 III, 2900 III, 2950 III, 2970, R200, R300, R410, R610, R710, R805, R900, T100, T105, T110, T300, T310, T610, T710; PowerVault MD1000, MD3000, MD3000i, NX3000 |
| Management protocols | SNMP 1, HTTP, HTTPS |
| Networking standards | IEEE 802.3 |
| Web-based management | Yes |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 2 |
| Maximum data transfer rate | 100 Mbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Supported network protocols | TCP/IP, NTP, SMTP, DHCP, DNS |
| Operating relative humidity (H-H) | 0 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 70.8 g |
| Dimensions | 132 mm x 66 mm x 40.6 mm |
Product Description
The Dell™ UPS Network Management Card works with Dell UPS Management Software to monitor, manage, and protect uninterruptible power supplies (UPSs) through standard Web pages, Simple Network Management Protocol (SNMP), and Secure Sockets Layer (SSL) security protocol. The Dell UPS Network Management Card can support up to five connected browsers at a time, or three with SSL protocol. You can configure the card with any one of the following options: Web browser, Local serial link (network parameters), Bootstrap Protocol/Dynamic Host Configuration Protocol (BOOTP/DHCP, network parameters). In addition, the Dell Network Management Card has the following features: Simultaneous monitoring of up to five connected browsers (three in SSL), Configuration of automatic e-mail message in response to UPS alarms and to transmit periodic reports, Control of UPS on/off switching with a Web browser, Adjustment and control of load segments through the Web interface, including sequential starting of the installation and optimization of backup time by shutting down non-priority systems, Automatic date and time adjustment through an NTP server, Protection by encrypted password, Protection by secure SSL connection (enabled by default), Recording of events and measurements in the non-volatile memory. Languages available: - English - French - Spanish - German - Simplified Chinese - Japanese - Russian - Korean - Traditional Chinese. Card firmware updated through the network. UPS firmware updated through the network. Fast Ethernet 10/100 MB compatibility with auto-negotiation on the RJ-45 port. Connection to the card with straight CAT 5 RJ-45 network cables [maximum card distance is 20m (65 ft)]. Easy installation—the Dell Network Management Card can be installed while the UPS is online, maintaining the highest system availability. Compatibility with the Internet Engineering Task Force (IETF) Management Information Base (MIB) and the Dell MIB.
Key Features
DELL 430-4101. Internal. Connectivity technology: Wired, Interface: Ethernet. Maximum data transfer rate: 100 Mbit/s. Product colour: Green
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DELL 430-4101 network card Internal Ethernet 100 Mbit/s (430-4101) is 100% genuine DELL hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DELL 430-4101 network card Internal Ethernet 100 Mbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DELL 430-4101 network card Internal Ethernet 100 Mbit/s compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 430-4101.
