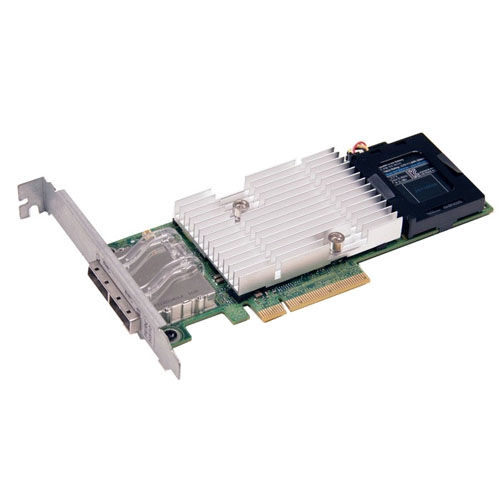

DELL PERC H810 RAID controller PCI Express x8 2.0 0.6 Gbit/s

Brand: DELL · SKU: 342-3537 · MPN: 342-3537 · Category: Components

DELL PERC H810 RAID controller PCI Express x8 2.0 0.6 Gbit/s
Request for Quote
Backorder

DELL PERC H810, SAS-2, PCI Express x8, 0, 1, 5, 6, 10, 50, 60, 0.6 Gbit/s, 1024 MB, DDR3. DELL PERC H810 RAID controller PCI Express x8 2.0 0.6 Gbit/s (part number 342-3537) is an enterprise raid controllers product available from Server Tech Central. Key specifications include depth 167.6 mm, height 63.5 mm, raid levels 0, 1, 5, 6, 10, 50, 60, host interface PCI Express x8, internal memory 1024 MB, channels quantity 8 channels, built-in processor LSI LSISAS2208, data transfer rate 0.6 Gbit/s. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Depth167.6 mm
Height63.5 mm
RAID levels0, 1, 5, 6, 10, 50, 60
Host interfacePCI Express x8
Internal memory1024 MB
Channels quantity8 channels
Built-in processorLSI LSISAS2208
Data transfer rate0.6 Gbit/s
Memory clock speed1333 MHz
Processor frequency800 MHz
Internal memory typeDDR3
PCI Card form factorFull-height
RAID Level MigrationYes
PCI Express connectorYes
PCI Express slots version2.0
Supported storage drive interfacesSAS-2
Warranty3-Year Warranty
Dimensions167.6 mm x 63.5 mm

Product Description

The PERC H810, Premium External RAID controller from DellTM, is based on LSI´s Thunderbolt (2208) ROC, which offers dual PPC 800 MHz cores, along with 6Gb/s SAS, 1333 DDR3 cache and PCIe 2.0 interface support. The PERC H810 operates on PERC 8.0 FW Stack and supports RAID Levels 0, 1, 10, 5, 50, 6, and 60. The PERC H810 is available in either Low profile or Full Height Adapter form. The PERC H810 only supports External Storage and is targeted at Premium Enterprise customers. This product has been tested and validated on Dell systems. It is supported by Dell Technical Support when used with a Dell system. - Supports a PCI-E 2.0 x8 host interface - Complies with Serial-Attached SCSI (SAS) 2.0 providing up to 6 Gb/sec throughput - Supports Dell-qualified Serial-Attached SCSI (SAS) hard drives - Offers RAID control capabilities which include support for RAID levels 0, 1, 5, 6, 10, 50, and 60

Key Features

DELL PERC H810. Supported storage drive interfaces: SAS-2, Host interface: PCI Express x8. RAID levels: 0, 1, 5, 6, 10, 50, 60, Data transfer rate: 0.6 Gbit/s, Internal memory: 1024 MB. Built-in processor: LSI LSISAS2208, Processor frequency: 800 MHz. Depth: 167.6 mm, Height: 63.5 mm. PCI Card form factor: Full-height

Frequently Asked Questions

Is this product genuine OEM?

Yes, this DELL PERC H810 RAID controller PCI Express x8 2.0 0.6 Gbit/s (342-3537) is 100% genuine DELL hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This DELL PERC H810 RAID controller PCI Express x8 2.0 0.6 Gbit/s includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the DELL PERC H810 RAID controller PCI Express x8 2.0 0.6 Gbit/s compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 342-3537.
