Brand: SIRIUS · SKU: 32R2815 · MPN: 3RA2815-1FW10 · Category: Components
Solid-state time-delayed auxiliary switch, off-delayed, without control signal, relay 1 NC + 1 NO, time range 0.05-100 s, 24-240 V AC/DC, 50/60 Hz, varistor for attenuation of the contactor coils integrated, screw terminal, can be snapped on at the front on contactors 3RT2 and auxiliary contactors 3RH2. Product brand name: SIRIUS.
| Type | Off-delayed, without control signal |
|---|---|
| Mounting | Can be snapped on at the front on contactors 3RT2 and auxiliary contactors 3RH2 |
| Frequency | 50/60 Hz |
| Time Range | 0.05-100 s |
| Terminal Type | Screw terminal |
| Voltage Rating | 24-240 V AC/DC |
| Additional Features | Varistor for attenuation of the contactor coils integrated |
| Relay Configuration | 1 NC + 1 NO |
| Warranty | Not Available |
| Weight | Not Available |
| Dimensions | Not Available |

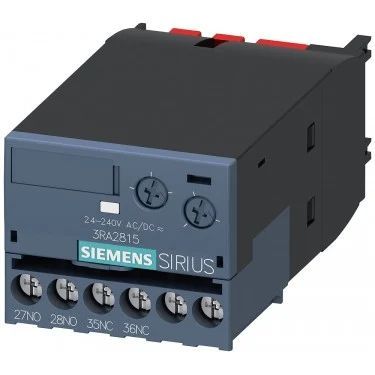

The SIRIUS 3RA2815-1FW10 is a solid-state time-delayed auxiliary switch with off-delay functionality. It operates without a control signal and features a relay with 1 normally closed (NC) and 1 normally open (NO) contact. The time range is adjustable from 0.05 to 100 seconds, and it operates on a voltage range of 24-240 V AC/DC at 50/60 Hz. Integrated varistors help attenuate contactor coil surges. It is equipped with screw terminals and designed for front snapping onto contactors 3RT2 and auxiliary contactors 3RH2.
Yes, this 3RA2815-1FW10 (32R2815) is 100% genuine SIRIUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This 3RA2815-1FW10 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 32R2815.
