StarTech.com 2CF2SATAR interface cards/adapter
Brand: StarTech.com · SKU: 2CF2SATAR · MPN: 2CF2SATAR · Category: Components
StarTech.com 2CF2SATAR, SATA, 5 - 50 °C, -25 - 70 °C, 69 mm, 83 mm, 9 mm. StarTech.com 2CF2SATAR interface cards/adapter (part number 2CF2SATAR) is an enterprise components product available from Server Tech Central. Key specifications include depth 83 mm, width 69 mm, height 9 mm, weight 60 g, i/o ports 1x 7 pin SATA DATA M 1x 15 pin SATA Power M 1x 5 pin Micro-USB B F, host interface SATA, mac compatibility No, usb 2.0 ports quantity 1. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 83 mm |
|---|---|
| Width | 69 mm |
| Height | 9 mm |
| Weight | 60 g |
| I/O ports | 1x 7 pin SATA DATA M 1x 15 pin SATA Power M 1x 5 pin Micro-USB B F |
| Host interface | SATA |
| Mac compatibility | No |
| USB 2.0 ports quantity | 1 |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating temperature (T-T) | 5 - 50 °C |
| Warranty | 3-Year Warranty |
| Weight | 60 g |
| Dimensions | 69 mm x 83 mm x 9 mm |
Product Description

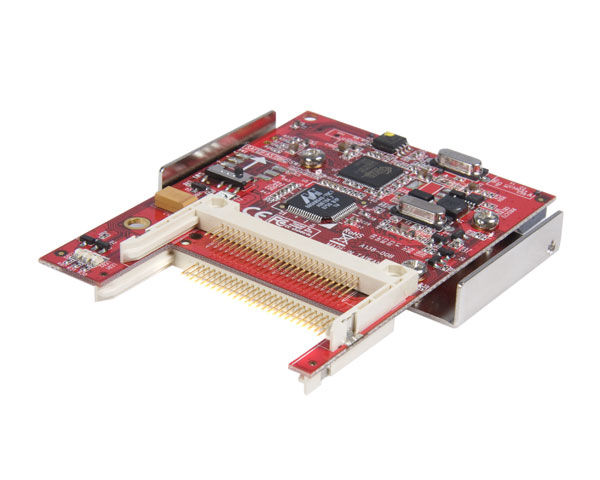

This SATA/USB to Dual CF SSD adapter features a SATA male power connector and a SATA male data connector, a Mini USB B connector, as well as two Compact Flash ports, allowing you to connect two Compact Flash type media cards to a laptop computer in place of a Serial ATA (SATA) hard drive. The USB 2.0 interface allows the CF hard drive adapter to be connected directly to a Desktop or Notebook PC, providing both data and power to the adapter and in turn allowing the CF cards to be accessed without requiring any additional adapters or cables. The adapter also features three RAID modes for card configuration; RAID 0 (Stripping), RAID 1(Mirroring), and BIG (Concatenation). A Do-it-yourself SSD solution, the CF to SSD (USB/SATA) adapter allows Compact Flash, Compact Flash 2, or MicroDrive media to be used on a notebook computer as a bootable hard drive and requires no software or driver installation.
Key Features
StarTech.com 2CF2SATAR. Host interface: SATA. Width: 69 mm, Depth: 83 mm, Height: 9 mm. I/O ports: 1x 7 pin SATA DATA M 1x 15 pin SATA Power M 1x 5 pin Micro-USB B F
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2CF2SATAR interface cards/adapter (2CF2SATAR) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2CF2SATAR interface cards/adapter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2CF2SATAR interface cards/adapter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 2CF2SATAR.
