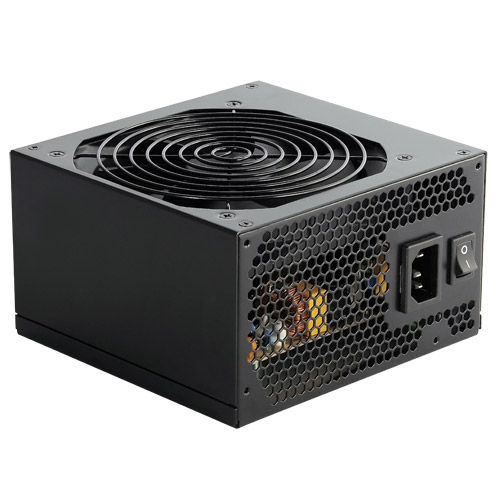

GIGABYTE GE-E570A-C3 power supply unit 570 W 20+4 pin ATX ATX Black
Brand: GIGABYTE · SKU: 24EPG-E46AC1-29R · MPN: 24EPG-E46AC1-29R · Category: Components
GIGABYTE GE-E570A-C3, 570 W, 100 - 240 V, 50 - 60 Hz, 7 - 3.5 A, +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V, Active. GIGABYTE GE-E570A-C3 power supply unit 570 W 20+4 pin ATX ATX Black (part number 24EPG-E46AC1-29R) is an enterprise power supplies product available from Server Tech Central. Key specifications include depth 86 mm, width 140 mm, height 150 mm, safety cUL, CSA, TUV, CB, CE, FCC, BSMI, CCC, C-Tick, weight 1.9 kg, purpose PC, atx version 2.3, total power 570 W. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 86 mm |
|---|---|
| Width | 140 mm |
| Height | 150 mm |
| Safety | cUL, CSA, TUV, CB, CE, FCC, BSMI, CCC, C-Tick |
| Weight | 1.9 kg |
| Purpose | PC |
| ATX version | 2.3 |
| Total power | 570 W |
| Cabling type | Non-Modular |
| Fan diameter | 12 cm |
| Fan location | Top |
| Input current | 7 - 3.5 A |
| Number of fans | 1 fan(s) |
| Ports quantity | 13 |
| Product colour | Black |
| Maximum current | 34 A |
| AC input voltage | 100 - 240 V |
| Weight (imperial) | 1.9 kg (4.19 lbs) |
| AC input frequency | 50 - 60 Hz |
| Dimensions (WxDxH) | 140 x 86 x 150 mm |
| Combined power (+5V) | 123 W |
| 80 PLUS certification | 80 PLUS |
| Combined power (+3.3V) | 123 W |
| Compliance certificates | RoHS |
| Warranty | 3-Year Warranty |
| Weight | 1.9 kg |
| Dimensions | 140 mm x 86 mm x 150 mm |
Product Description
Intel Specification Complies with Intel ATX 12V v2.3 power supply design guide. Japan Made Main Capacitor Best reliability Japan made main capacitor, prolonging the life cycle of each power supply unit and provide a more steady output. Dual +12V rails 2rails +12V design, capable of supplying high power output. 12cm Cooling Fan 12cm silent cooling fan with smart fan control sensor. Multi-Protection Over-voltage, over-current, under-voltage and short-circuit protection to ensure the sytem stability. Sleeve Cable Sleeve cable for good air convection and tidiness. PCI-E 2.0 Ready Support the latest specification (6+2)-Pin. EUP Ready Complies with newest Europe EUP energy saving specifiction. 80 Plus Certified High efficiency circuit design, save both the energy and your bill. RoHS Certified Environment friendly, complying with RoHS & WEEE regulations.
Key Features
GIGABYTE GE-E570A-C3. Total power: 570 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Black, Fan diameter: 12 cm, Number of fans: 1 fan(s). Compliance certificates: RoHS
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GE-E570A-C3 power supply unit 570 W 20+4 pin ATX ATX Black (24EPG-E46AC1-29R) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GE-E570A-C3 power supply unit 570 W 20+4 pin ATX ATX Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GE-E570A-C3 power supply unit 570 W 20+4 pin ATX ATX Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 24EPG-E46AC1-29R.
