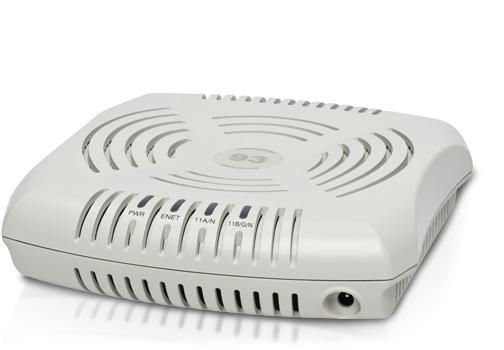

DELL PowerConnect W-IAP93 300 Mbit/s Power over Ethernet (PoE)
Brand: DELL · SKU: 210-37734 · MPN: 210-37734 · Category: Components
DELL PowerConnect W-IAP93, 2.4 GHz, 5 GHz, 300 Mbit/s, 802.1x RADIUS, WPA, WPA2, 10,100 Mbit/s. DELL PowerConnect W-IAP93 300 Mbit/s Power over Ethernet (PoE) (part number 210-37734) is an enterprise components product available from Server Tech Central. Key specifications include 5 ghz Yes, weight 260 g, 2.4 ghz Yes, internal No, power led Yes, dc-in jack Yes, modulation 16-QAM, 64-QAM, BPSK, CCK, QPSK, frequency band 2.4, 5 GHz. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| 5 GHz | Yes |
|---|---|
| Weight | 260 g |
| 2.4 GHz | Yes |
| Internal | No |
| Power LED | Yes |
| DC-in jack | Yes |
| Modulation | 16-QAM, 64-QAM, BPSK, CCK, QPSK |
| Frequency band | 2.4, 5 GHz |
| LED indicators | LAN, Power, WLAN |
| Dimensions (WxDxH) | 120 x 130 x 35 mm |
| Power requirements | 12V DC |
| Networking features | Gigabit Ethernet |
| Security algorithms | 802.1x RADIUS, WPA, WPA2 |
| Wireless technology | 802.11a/b/g/n |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Antenna gain level (max) | 5.8 dBi |
| Power over Ethernet (PoE) | Yes |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 300 Mbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 10 W |
| Supported data transfer rates | 1/2/5.5/6/6.5/9/11/12/18/24/36/48/54/150 Mbit/s |
| Warranty | 3-Year Warranty |
| Weight | 260 g |
Product Description
High-performance, low-complexity, budget-friendly Entry-level indoor 802.11n access points (APs) with built-in virtual controller designed for low-density deployments. Simple enterprise-class Wi-Fi Create an affordable, high-performance entry-level Wi-Fi™ network with PowerConnect™ W-IAP93 access points. Uncompromised performance Build an entry-level Wi-Fi™ network for your small or midsize business without sacrificing functionality or performance. PowerConnect™ W-IAP90 Series access points (APs) are compact single-radio 802.11n indoor access points with built-in virtual controller functionality. - Data rates up to 300 Mbps; - Single-radio, dual-band design that works in either 2.4GHz or 5GHz bands; - Wi-Fi access for high-performance 802.11n and legacy 802.11a/b/g clients; - Built-in internal Omni-directional. Like a dedicated controller, the virtual controller technology is able to monitor and control critical network maintenance tasks, including: - AP auto discovery; - 802.1X authentication; - Role- and device-based policy enforcement; - Rogue detection; - Specialized Adaptive Radio Management (ARM) functions that optimize WiFi client behavior enabling IAPs to avoid RF interference. When multiple IAPs are connected, a single IAP acts as a primary virtual controller. If that primary virtual controller fails, another W-Series IAP in the chain automatically takes over as virtual controller with no disruption to services. Ease of deployment You can be up and running in minutes. From a laptop, simply connect wirelessly to a service set identifier (SSID) and complete over-the-air provisioning in three easy steps. To expand, simply install more PowerConnect W-IAPs. Configurations are automatically uploaded from the designated virtual controller. Management and visibility Securely administer multiple PowerConnect W-IAP WiFi networks from a single console with the Dell™ PowerConnect W-Series AirWave software management suite. It gives you real-time visibility into users, mobile devices and both wired and wireless LAN infrastructures, enabling W-IAPs to be deployed in hundreds of remote locations. Investment protection As your WLAN requirements expand, firmware that is expected to be available by early 2012 will help you reimage your PowerConnect W-IAPs as 802.11n campus APs and allow you to migrate to a centralized mobility controller architecture. This extends support to thousands of APs and can provide wireless intrusion protection as well as powerful spectrum analysis capabilities. Advanced RF management Build your network to better serve all users with Dell’s Adaptive Radio Management (ARM) technology. By adjusting to how WiFi clients interact, ARM helps ensure that data, voice and video applications have sufficient network resources to operate properly. Key ARM features include: - Spectrum load balancing that uniformly distributes clients across channels in high-density environments; - Noise awareness, which dynamically shifts clients away from channels hampered by outside interference; - Band steering (only applicable for dual-radio APs), which dynamically transfers clients away from crowded bands and allows users to define client ratios across different bands; - Airtime fairness that delivers equal airtime access to all WiFi clients, regardless of the client type, wireless chip or operating system. High-definition video and toll-quality voice Deploy HD-quality video and toll-quality voice across your wireless infrastructure with PowerConnect W Series APs centralized controllers. Key video and voice features include: Dynamic multicast optimization technology that supports more than 15 live, high-definition multicast video streams per radio. ARM technology that is designed to: - Automate channel assignments; - Increase capacity as coverage expands; - Protect against neighboring wireless interference; - Ensure airtime fairness for clients; - Help maintain balanced client distribution across 2.4/5GHz frequency bands and multiple 802.11 channels. Device fingerprinting technology that helps ensure reliable, high-quality voice over WiFi without disabling automated channel management. Powered by Aruba Networks Aruba Networks® ArubaOS™ serves as the operating system and application engine for all Dell PowerConnect W-Series controllers, access point and guest access system devices.
Key Features
DELL PowerConnect W-IAP93. 2.4 GHz, 5 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 802.1x RADIUS, WPA, WPA2. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DELL PowerConnect W-IAP93 300 Mbit/s Power over Ethernet (PoE) (210-37734) is 100% genuine DELL hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DELL PowerConnect W-IAP93 300 Mbit/s Power over Ethernet (PoE) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DELL PowerConnect W-IAP93 300 Mbit/s Power over Ethernet (PoE) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 210-37734.
