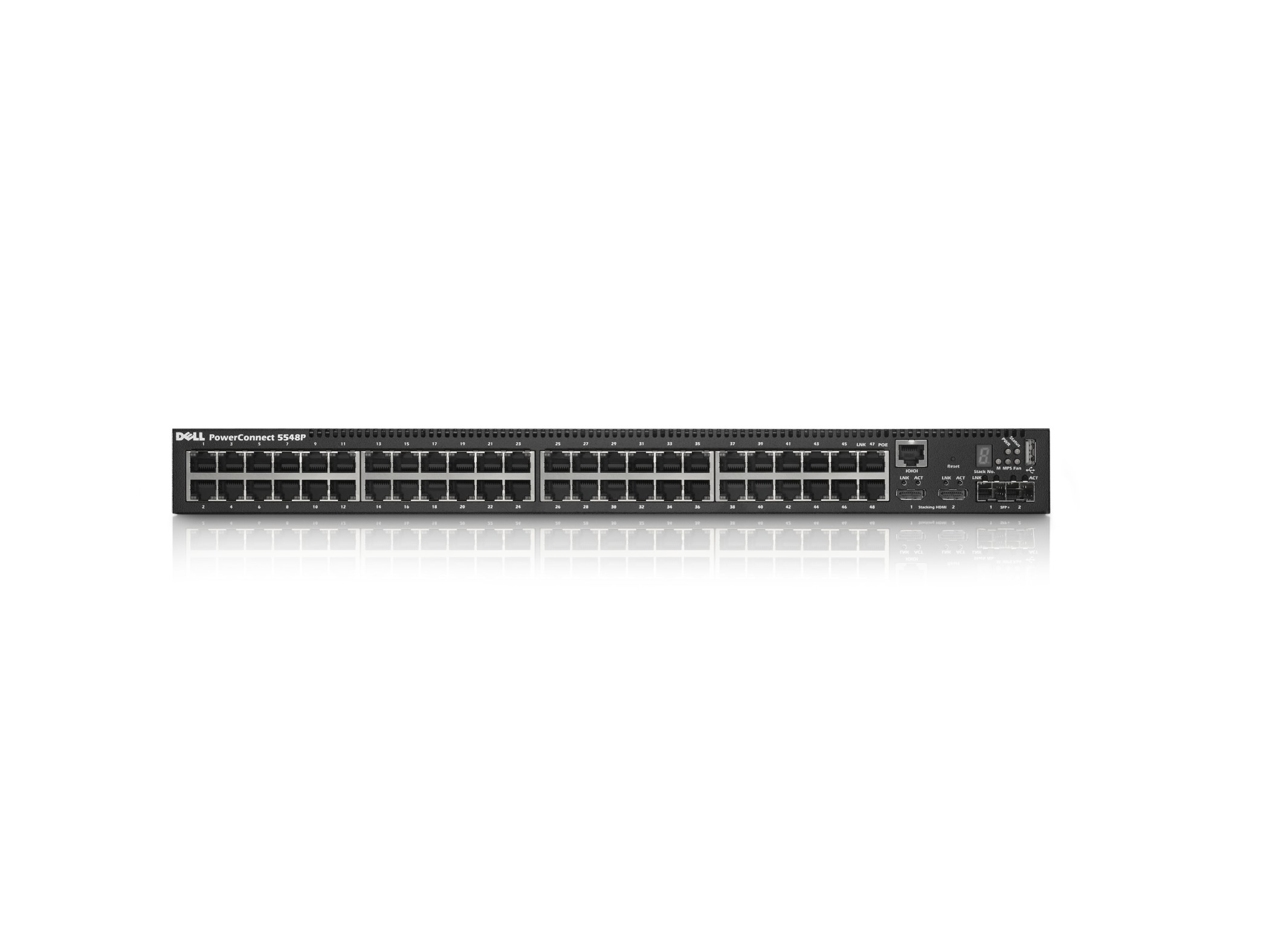

DELL PowerConnect 5548P Managed L2 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black
Brand: DELL · SKU: 210-34477 · MPN: 210-34477 · Category: Components
DELL PowerConnect 5548P, Managed, L2, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Rack mounting, 1U. DELL PowerConnect 5548P Managed L2 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black (part number 210-34477) is an enterprise components product available from Server Tech Central. Key specifications include depth 381 mm, width 440 mm, height 43.2 mm, manual Yes, weight 6.1 kg, bandwidth 40 Gbit/s, stackable Yes, 10g support Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 381 mm |
|---|---|
| Width | 440 mm |
| Height | 43.2 mm |
| Manual | Yes |
| Weight | 6.1 kg |
| Bandwidth | 40 Gbit/s |
| Stackable | Yes |
| 10G support | Yes |
| Form factor | 1U |
| Full duplex | Yes |
| MIB support | MIB II, Bridge MIB, SNMP 2 MIB, Manager-to-Manager MIB, Ether-like MIB, RMON RIB, IP MIB, TCP MIB, UDP MIB, RADIUS MIB, ENTITY–MIB |
| Memory type | SDRAM |
| Switch type | Managed |
| Flash memory | 16 MB |
| Switch layer | L2 |
| VLAN support | Yes |
| DHCP features | DHCP server, DHCP client |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Auto MDI/MDI-X | Yes |
| Port mirroring | Yes |
| Product colour | Black |
| Internal memory | 1024 MB |
| Number of VLANs | 4000 |
| Warranty | 3-Year Warranty |
| Weight | 6.1 kg |
| Dimensions | 440 mm x 381 mm x 43.2 mm |
Product Description
Helps deliver flexible, energy-conscious gigabit switching with PowerConnect™ 5548P, featuring robust security, stacking, Power-over-Ethernet (PoE) and management. With 24 wire-speed Gigabit Ethernet (GbE) ports available for campus switching, the 5548P scales with your network as it grows. - High throughput: Supports wire-speed performance with up to 48 ports of GbE and two 10GbE uplink ports for 40 Gbps of bandwidth - Energy conscious: High-efficiency power supplies in a system designed to meet Energy Efficient Ethernet (EEE) standards, helping reduce power requirements during low link use. PoE capability allows the network to power VoIP, WLAN APs and badge readers. - Scalable: Manages up to eight wire-speed switches as a single unit. High performance Help meet your network switching needs, no matter the size of your organization, with the PowerConnect 5548P, featuring 48 ports of wire-speed GbE and robust security and enterprise management capabilities. USB configuration for rapid deployment and dedicated 10Gb stacking interfaces and 10Gb uplinks help you grow your wiring closets with your network. Rapid deployment and configuration Help save time and deployment costs by simplifying your network rollout with PowerConnect™ 5500 series of Gigabit Ethernet switches. Automatically assign switch configuration and IP addresses via DHCP or local USB during initial rollout. You can configure up to eight switches in a stack without pressing a single key or setting up a console connection. VoIP functionality Help ensure that VoIP traffic is prioritized in the event of resource contention through the voice VLAN function. LLDP-Med provides detailed network topology records, emergency call service via IP phone location information and troubleshooting data. Power over Ethernet Help lower power consumption with the power over Ethernet (IEEE 802.3af PoE) capabilities of the PowerConnect 5548P. Designed to provide up to 15.4 Watts of power for network-attached devices, such as WLAN access points (WAPs) and voice over IP (VoIP) handsets, PoE can help simplify network installation and maintenance by reducing the need for power adapters and power planning.
Key Features
DELL PowerConnect 5548P. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Frequently Asked Questions
Is this product genuine OEM?
Yes, this DELL PowerConnect 5548P Managed L2 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black (210-34477) is 100% genuine DELL hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This DELL PowerConnect 5548P Managed L2 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the DELL PowerConnect 5548P Managed L2 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 210-34477.
