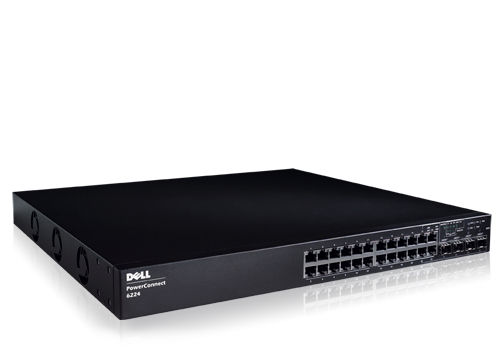

DELL PowerConnect 210-17312-5P network switch Managed L3 1U Black

Specifications

Product Description

Rack density for small to medium enterprises One of Dell’s Most Advanced Switch Offerings The PowerConnect 6224 is one of Dell’s most advanced switch offerings with advanced core switching capabilities for the small to medium enterprise. This 24-port Gigabit Ethernet Layer 3 switch is stackable, and offers optional 10 Gigabit Ethernet uplinks and supports the latest version of the Internet Protocol — IPv6 — enabling broader worldwide scalability. High-performance stacking is supported for up to 12 systems, and advanced security and Quality of Service (QoS) features make this switch ideal for applications such as Voice over IP, Layer 3 routing, High Performance Cluster Computing (HPPC) and Internet SCSI (iSCSI) storage. Lifetime Limited Warranty PowerConnect switches not only provide the quality, reliability and capability you expect from Dell, but also the peace of mind that guarantees hardware for life — a true Lifetime Warranty. High Density Delivering significant rack density, the PowerConnect 6224 is designed to give users the flexibility to maximize server and workstation connectivity in a 1U form factor. Up to 576 servers and/or clients can be connected in a stack of twelve 62xx series switches to provide the maximum density, flexibility and manageability. And the stack is built on a 10/100/1000BASE-T Gigabit Ethernet switch. High-Performance Stacking The PowerConnect 6224 supports high-performance stacking for up to 12 systems (each running at 48 Gbps), which allows increased throughput to be added as needed without affecting network performance. With each switch supporting up to 136 Gbps in switch capacity, the customer can have almost 3 Terabytes of capacity in a single stack of 12 switches. 10 Gigabit Ethernet The PowerConnect 6224 switch supports up to four 10 Gigabit fiber and two 10GBase-T copper Ethernet uplinks for connectivity directly to 10GE servers, routers, enterprise backbones and data centers. Advanced Layer 3 Capabilities The PowerConnect 6224 supports advanced Layer 3 routing and multicast protocols to help reduce congestion and manage traffic in the network. Frequently used LAN routing protocols such as RIPv1/v2, OSPFv2/v3, VRRP, IGMP, DVMRP, PIM and LLDP-MED are also supported. Advanced QoS The PowerConnect 6224 offers flexibility in QoS by giving network administrators the ability to prioritize time-critical network traffic based on a variety of user-defined criteria. Administrators can expedite traffic based on L2 or L3 information, such as IP QoS, and provide greater control over traffic flow within the network. Voice virtual LANs (VLANs) are provided specifically for voice over IP (VoIP) applications. Advanced Security Access Control Lists (ACLs) can be supported on the switch, allowing the user to perform deep packet inspection. 802.1x port authentication offers both single and multiple host access. Further security is provided through Denial of Service (DoS) Attack Prevention, whereby the switch can help protect against common network attacks and CPU attacks. IPv6 Certified IPv6 is version six of the Internet Protocol that has been in development for over 20 years. IPv6 has been designed to address IP address limitations of previous versions of the Internet Protocol, enabling an increased number of unique IP addresses for broader scalability worldwide now and in the future.

Key Features

DELL PowerConnect 210-17312-5P. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 136 Gbit/s. Networking standards: IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1x, IEEE 802.2, IEEE.... Rack mounting, Form factor: 1U
