Brand: Leviton · SKU: 20L2316 · MPN: 2316 · Category: Components

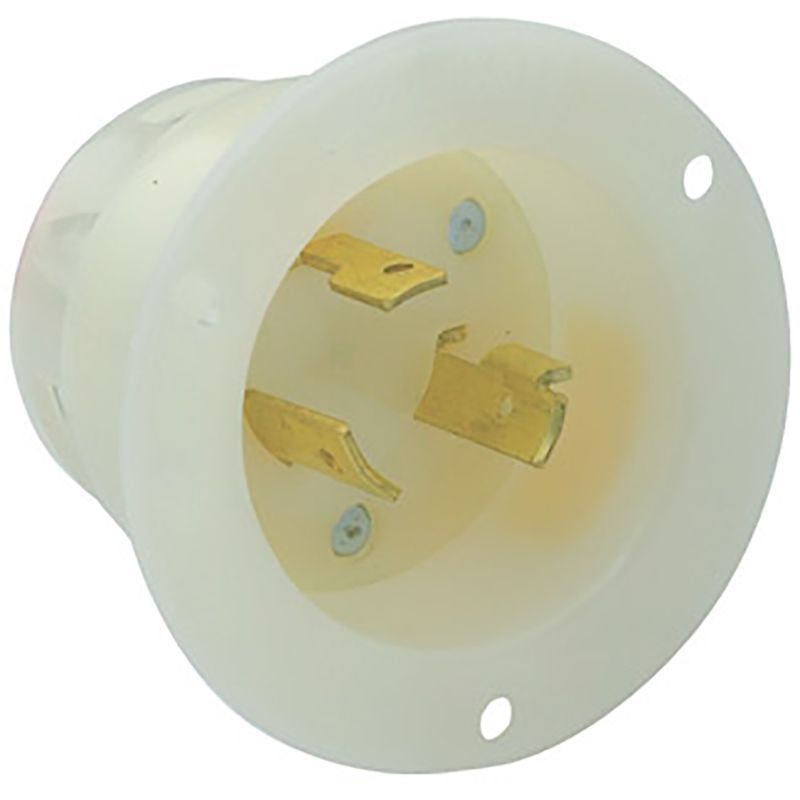

Leviton's industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty. This is a 20 Amp, 125 Volt, NEMA L5-20R, 2-Pole, 3-Wire, Grounding, Flanged Outlet Locking Receptacle, Industrial Grade, with Screw Terminal, in White. It is rated V-2 per UL 94 for flammability and has an operating temperature range of -40°C to 60°C. The body and face material are Nylon, with Brass grounding screws and Line contacts. Strap material is thermoplastic Nylon. Terminal screws are Brass 10-32. It is certified to CSA C22.2 No. 42 and listed to UL 498.
| Color | White |
|---|---|
| Material | Nylon (Body and Face), Thermoplastic Nylon (Strap) |
| Grounding | Yes |
| Terminal Type | Screw Terminal |
| Voltage Rating | 125 VAC |
| Amperage Rating | 20 A |
| Number of Poles | 2 |
| Number of Wires | 3 |
| Terminal Accom. | 18-10 AWG |
| Horsepower Rating | 1 HP |
| Dielectric Voltage | Withstands 2000V per UL498 |
| NEMA Configuration | L5-20R |
| Flammability Rating | V-2 per UL 94 |
| Operating Temperature | -40°C to 60°C |
| Screw Terminal Torque | 10-14 in-lbs |
| Warranty | Lifetime warranty |
| Weight | 0.25 lb |
| Dimensions | 2.88 in x 2.88 in x 2.09 in |
This is a Leviton 20 Amp, 125 Volt, NEMA L5-20R, 2-Pole, 3-Wire, Grounding, Flanged Outlet Locking Receptacle, Industrial Grade, in White. It features a Nylon body and face, thermoplastic Nylon strap, and Brass contacts and screws. It is rated V-2 per UL 94 for flammability and has an operating temperature range of -40°C to 60°C. The receptacle is UL listed and CSA certified.
