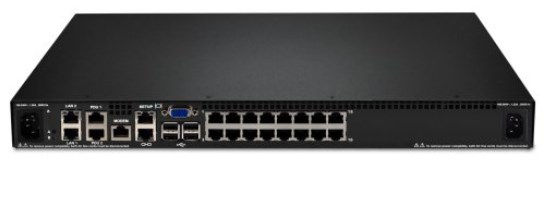

Lenovo 1754D1X KVM switch Rack mounting Black
Brand: Lenovo · SKU: 1754D1X · MPN: 1754D1X · Category: Data Center
Lenovo 1754D1X, 1600 x 1200 pixels, Ethernet LAN, Rack mounting, 18 W, 1U, Black
Specifications
| Depth | 324 mm |
|---|---|
| Width | 431.8 mm |
| Height | 43.7 mm |
| Weight | 3.2 kg |
| Console port | RJ-45 |
| Ethernet LAN | Yes |
| Input voltage | 100-240 V |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |
| Mouse port type | USB |
| Video port type | VGA |
| Built-in display | No |
| Audio connections | No |
| AC input frequency | 50 - 60 Hz |
| Cabling technology | 10/100/1000Base-T(X) |
| Keyboard port type | USB |
| Maximum resolution | 1600 x 1200 pixels |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| USB 2.0 ports quantity | 4 |
| Storage temperature (T-T) | -20 - 70 °C |
| Ethernet LAN (RJ-45) ports | 16 |
| VGA (D-Sub) ports quantity | 1 |
| Harmonized System (HS) code | 85176200 |
| Warranty | 3-Year Warranty |
| Weight | 3.2 kg |
| Dimensions | 431.8 mm x 324 mm x 43.7 mm |
Product Description
The IBM GCM16 Global Console Manager includes the following items: - 16-port console switch - Mounting hardware for EIA space for rack sidewall compartment - One 1U filler panel - Two C13/C14 rack power cables - RJ45-DB9F DCE adapter for use with Setup port - RJ45-DB9M DTE adapter for use with Modem port - 16 terminators for daisy-chaining configurations - Installation publications and warranty
Key Features
Lenovo 1754D1X. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Maximum resolution: 1600 x 1200 pixels. Product colour: Black, Rack capacity: 1U. Input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Power consumption (typical): 18 W
