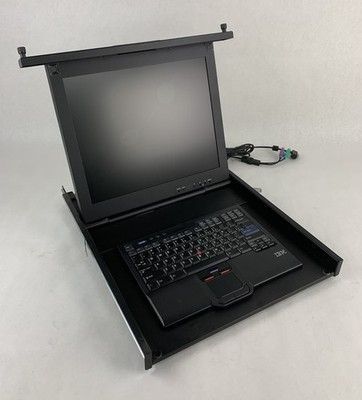

IBM 1723-HC1 1U 17-Inch Flat Panel Rack Console Kit
Brand: IBM/Lenovo · SKU: 1723-HC1 · MPN: 172317X · Category: Components
IBM 1723-HC1 is a 1U 17-inch flat panel rack console kit with a TFT LCD display, 1280 x 1024 resolution, VGA input, mounting rails, cable-management arm, and accessories.
Specifications
| Cooling | Fan-Cooled, Variant Dependent |
|---|---|
| Brightness | 250 cd/m2 |
| Color Depth | 16.7 M colors |
| Display Size | 17.0 inch diagonal |
| Display Type | TFT active matrix (SXGA TN/TFT) |
| Feature Code | 0051 |
| Input Signal | Analog RGB (VGA) (DB15 Connector) |
| Product Type | 1U Flat Panel Console Kit |
| Contrast Ratio | 400:1 |
| Vertical Frequency | 50 - 77 Hz |
| Viewing Angle (H/V) | 150 degrees to 115 degrees |
| Horizontal Frequency | 30 - 79 kHz |
| Resolution (Maximum) | 1280 x 1024 at 75 Hz |
| Power Consumption (Normal) | Less than 36 watts |
| Warranty | 3-Year Warranty |
| Weight | Unknown |
| Dimensions | 1U Rack Unit Height |
Key Features
The IBM 1723-HC1 1U 17-Inch Flat Panel Console Kit , feature code 1723-HC1 , is a rack-mounted console solution designed for managing IBM System x and BladeCenter servers in space-constrained data-center environments. IBM identifies HC1 as the machine model and 0051 as the feature code for the 1U 17-inch Flat Panel Console Kit, with 172317X listed as the associated product number. The 1723-HC1 combines a 17-inch TFT active-matrix LCD display with a compact 1U rack-mount form factor . This design allows administrators to access and manage rack-mounted servers from a local console while conserving valuable rack space. IBM designed the console kits specifically for space-constrained rack environments and server-management applications. The display provides a maximum resolution of 1280 x 1024 pixels at 75 Hz , delivering an SXGA-class image suitable for server administration, BIOS configuration, operating-system installation, troubleshooting, and other local management tasks. The panel is specified with approximately 250 cd/m² brightness and a 400:1 contrast ratio . For video connectivity, the console uses an analog RGB VGA interface with a
Frequently Asked Questions
Is this product genuine OEM?
Yes, this IBM 1723-HC1 1U 17-Inch Flat Panel Rack Console Kit (1723-HC1) is 100% genuine IBM/Lenovo hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This IBM 1723-HC1 1U 17-Inch Flat Panel Rack Console Kit includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the IBM 1723-HC1 1U 17-Inch Flat Panel Rack Console Kit compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 1723-HC1.
