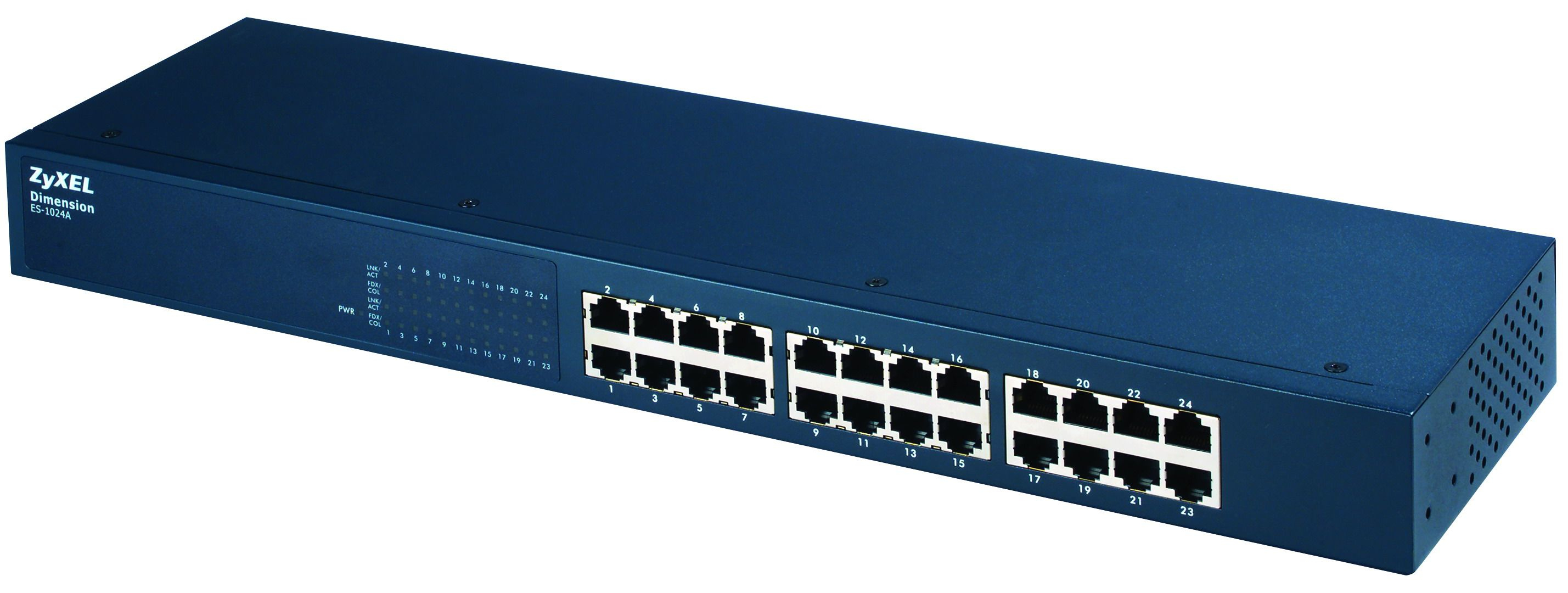

Zyxel Dimension ES-1024A Unmanaged
Brand: Zyxel · SKU: 160111.1024A · MPN: 160111.1024A · Category: Components
Zyxel Dimension ES-1024A, Unmanaged, Full duplex. Zyxel Dimension ES-1024A Unmanaged (part number 160111.1024A) is an enterprise components product available from Server Tech Central. Key specifications include weight 1.5 kg, i/o ports 24x 10/100 Ethernet, full duplex Yes, switch type Unmanaged, mac address table 4000 entries, dimensions (wxdxh) 440 x 120 x 44 mm, power requirements 100 -240V; 50/60Hz, switching capacity 1.28 Gbit/s. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 1.5 kg |
|---|---|
| I/O ports | 24x 10/100 Ethernet |
| Full duplex | Yes |
| Switch type | Unmanaged |
| MAC address table | 4000 entries |
| Dimensions (WxDxH) | 440 x 120 x 44 mm |
| Power requirements | 100 -240V; 50/60Hz |
| Switching capacity | 1.28 Gbit/s |
| Technical features | MDI/MDI-X |
| Flow control support | Yes |
| Jumbo frames support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Packet buffer memory | 1.25 MB |
| Packet transfer speed | 148800pps |
| Connectivity technology | Wired |
| Power over Ethernet (PoE) | No |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 0.1 Gbit/s |
| Operating temperature (T-T) | 0 - 45 °C |
| Power consumption (typical) | 19 W |
| Supported data transfer rates | 10/100 Mbps |
| Quality of Service (QoS) support | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Warranty | 3-Year Warranty |
| Weight | 1.5 kg |
Product Description
Key features: - 24x Auto MDI-II/MDI-X ports. - 802.3x Flow Control, Broadcast Storm Protection. - Rack Mountable. - 3.2Gbps Backplane. Recommended for: - Small and Medium Business looking for cost-effective edge switch to desktops. - Business looking for minimal network management effort and reduced expanses. - No configuration required.
Key Features
Zyxel Dimension ES-1024A. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 4000 entries, Switching capacity: 1.28 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
