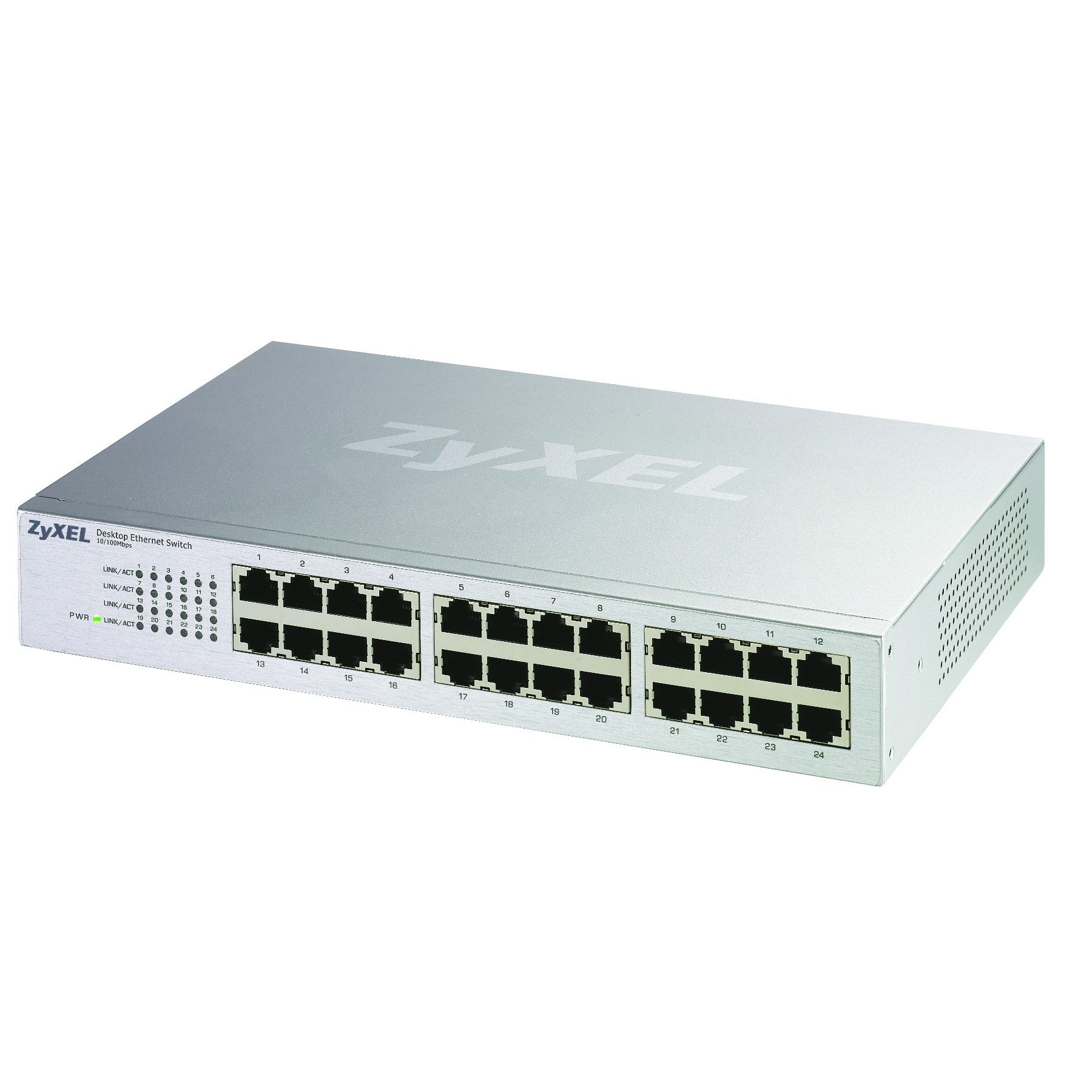

Zyxel ES-124P 24-port Desktop Ethernet Switch Unmanaged
Brand: Zyxel · SKU: 160111.0124 · MPN: 160111.0124 · Category: Networking
Zyxel ES-124P 24-port Desktop Ethernet Switch, Unmanaged, Full duplex. Zyxel ES-124P 24-port Desktop Ethernet Switch Unmanaged (part number 160111.0124) is an enterprise switches product available from Server Tech Central. Key specifications include weight 1.37 kg, i/o ports 24x 10/100 Ethernet, full duplex Yes, switch type Unmanaged, certification FCC Class B, CE, C-Tick, led indicators Power, mac address table 8000 entries, dimensions (wxdxh) 267 x 152.5 x 42 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Weight | 1.37 kg |
|---|---|
| I/O ports | 24x 10/100 Ethernet |
| Full duplex | Yes |
| Switch type | Unmanaged |
| Certification | FCC Class B, CE, C-Tick |
| LED indicators | Power |
| MAC address table | 8000 entries |
| Dimensions (WxDxH) | 267 x 152.5 x 42 mm |
| Power requirements | 100-240V; 50-60Hz |
| Switching capacity | 4.8 Gbit/s |
| Technical features | Auto-MDI/MDI-X |
| Networking features | Ethernet, Fast Ethernet |
| Flow control support | Yes |
| Networking standards | IEEE 802.3u, IEEE 802.3x |
| Packet buffer memory | 1.25 MB |
| Packet transfer speed | 148.800 pps |
| Power over Ethernet (PoE) | No |
| Maximum data transfer rate | 0.1 Gbit/s |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 7.26 W |
| Supported data transfer rates | 10/100 Mbps |
| Operating relative humidity (H-H) | 10 - 90% |
| Copper ethernet cabling technology | 100Base-TX, 10Base-T |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Warranty | 3-Year Warranty |
| Weight | 1.37 kg |
Product Description
Better Performance and Efficiency The full range of the Desktop Ethernet Switch, with 8/16/24-port and internal power adapter, is designed to boost your network with better performance and efficiency. With the N-way auto-negotiation function, the ES-108P/116P/124P connects the network counterparts with the highest possible network speed and activates duplex mode automatically. Transmission Reliability Unlike shared 10/100 Mbps networks, the ZyXEL Desktop Ethernet Switch series eliminates congestion by providing dedicated bandwidth. Its duplex mode doubles the effective bandwidth by enabling two-way communications. Store-and-forward service brings low latency and error-free packet delivering. The plug-and-play and multiple network protocol compatibility of the ES-108P/116P/124P make the installation and management easier and faster than ever. Compact Size Fits Your Working Environment The compact size fits into any working environment due to the included rack mount brackets. No matter how intensive your network demands, ZyXEL’s Desktop Ethernet Switch series, with internal power adapters, supports your needs with an affordable and reliable network solution designed especially for SOHO and Small Office. Key Features - 24 autosensing 10/100 full duplex ports. - Internal power adapter available. - Full wire-speed store-and-forward technology support. - Auto-MDI/MDI-X functions support.
Key Features
Zyxel ES-124P 24-port Desktop Ethernet Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3u, IEEE 802.3x
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Zyxel ES-124P 24-port Desktop Ethernet Switch Unmanaged (160111.0124) is 100% genuine Zyxel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Zyxel ES-124P 24-port Desktop Ethernet Switch Unmanaged includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Zyxel ES-124P 24-port Desktop Ethernet Switch Unmanaged compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 160111.0124.
