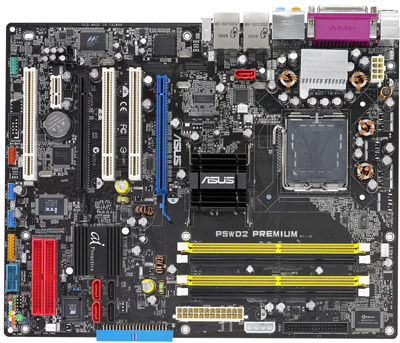

ASUS P5WD2 Premium Intel 955X-chipset LGA 775 (Socket T) ATX
Brand: ASUS · SKU: 12479 · MPN: 12479 · Category: Components
ASUS P5WD2 Premium Intel 955X-chipset, Intel, LGA 775 (Socket T), Intel® Celeron®, Intel® Pentium® 4, Intel® Pentium® D, Intel® Pentium® Extreme Edition, 8 GB, 8 MB, Intel PCIe Gigabit LAN-controller, Marvell 88E8001 Gigabit LAN-controller
Specifications
| Audio chip | Realtek ALC882D |
|---|---|
| Audio output | Coaxial, Optical S/PDIF |
| Flash memory | 8 MB |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | 1x PCI Express x16 1x Universal PCI-E 1x PCI Express x1 3x PCI |
| S/PDIF out port | Yes |
| Processor socket | LGA 775 (Socket T) |
| CPU fan connector | Yes |
| EZ plug connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| GAME/MIDI connector | Yes |
| Networking features | Intel PCIe Gigabit LAN-controller, Marvell 88E8001 Gigabit LAN-controller |
| PS/2 ports quantity | 2 |
| eSATA ports quantity | 1 |
| Audio output channels | 7.1 channels |
| Manageability features | WOL by PME WOR by PME Chassis Intrusion |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 8 GB |
| Motherboard form factor | ATX |
| Warranty | 3-Year Warranty |
Product Description
AI Life Series motherboards bring lifestyle and personal computing together. They entertain you with TV, radio and Dolby support, and link you to the rest of the world via wireless connection (WiFi-TV Edition only). To create a peaceful environment, several new and improved innovations are also included to reduce noise and temperature. Don't change your way of life for a computer. Instead let the ASUS Life Series improve the quality of your life. Features: Intel LGA775 Pentium 4 CPU This motherboard supports the latest Pentium 4 CPU from Intel in LGA775 package. With 1066/ 800/ 533MHz FSB, 1MB L2 cache, Hyper-Threading Technology and core-speeds up to 3.6GHz and beyond, Intel's LGA775 Pentium 4 is one of the fastest desktop processors to date. Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 Caches to satisfy the rising demand for more powerful processing capability. Dual-Core CPU Enjoy the extraordinary CPU power from the latest dual-core CPU. The advanced processing technology contains two physical CPU cores with individually dedicated L2 Caches to satisfy the rising demand for more powerful processing capability. Intel 955X chipset The Intel 955X is the latest chipset designed to support maximum 8GB dual-channel DDR2 667/533 architecture, 1066/800 FSB (front-side-bus), PCI Express x16 graphics and dual-core CPU. Easily build an entertainment PC or create a multimedia environment with its exceptionally high bandwidth. Together with the 4 Serial ATA ports enabled through the SATA 3Gb/s RAID controller integrated in the ICH7R Southbridge, the Intel 955X satisfies multi-task processing and data security. Intel® MPT (Intel® Memory Pipeline Technology) The Intel® Memory Pipeline Technology (Intel MPT) delivers additional system-level performance by optimizing memory access between CPU and system memory, and allows increased performance at standard operating specifications. Native DDR2 800 Support To attain top performance, ASUS engineers successfully unleashed the true potential of DDR2 memory. Native DDR2 800 maximizes system performance by eliminating the bottleneck when overclocking both the CPU and memory, providing great performance for 3D graphics and other memory demanding applications. Universal PCI-E Slot The Universal PCI Express technology offers utilization flexibility of the Southbridge PCI Express interface. It enables users to plug in an additional PCI Express graphics card to set up a dual graphics card platform on a single motherboard. ASUS’ own smart quick switch further detects how users installed their PCI Express devices, and intelligently reroutes the PCI Express lanes for optimized bandwidth allocation. AI NOS™ Applications such as 3D games and video editing demand a huge chunk of system resource. Inject ""nitrous oxide"" into your CPU! The patented AI NOS™ (Non-delay Overclocking System) technology intelligently detects system load and automatically boosts performance for the most demanding tasks. Unlike other dynamic overclocking techniques, AI NOS™ reacts much faster to satisfy your unending need for speeds . PEG Link This latest technology, PEG (PCI Express Graphics) Link Mode, is a unique feature that enables users to boost graphics card performance for superior video quality. PEG Link allows users to raise GPU and VGA memory throughput via the motherboard BIOS the same way system bus and memory bus are tweaked. PEG Link Mode enables powerful video performance on DX8 and DX9 applications. ASUS engineers carefully fine-tuned the parameters for every single PCI-Express card to provide system stability during high-speed graphics operation. Precision Tweaker Precision Tweaker is designed for serious overclockers. It offers ways to raise system performance inch-by-inch and step-by-step to achieve maximum performance! This is about getting the most out of your machine, and taking pride in your customized computer. Precision Tweaker provides overclocking options for all major parts of the system: CPU, Memory, PCI-Express, and Front Side Bus.
Key Features
ASUS P5WD2 Premium Intel 955X-chipset. Processor manufacturer: Intel, Processor socket: LGA 775 (Socket T), Compatible processor series: Intel® Celeron®, Intel® Pentium® 4, Intel® Pentium® D, Intel® Pentium® Extreme Edition. Maximum internal memory: 8 GB, Flash memory: 8 MB. Networking features: Intel PCIe Gigabit LAN-controller, Marvell 88E8001 Gigabit LAN-controller. Motherboard form factor: ATX, Audio output channels: 7.1 channels, Audio chip: Realtek ALC882D. Controller 2nd interface type: ITE IDE, Controller interface type: Silicon Image 3132 SATA; UltraDMA 100/66/33; Serial ATA I/II, Audio output: Coaxial, Optical S/PDIF
