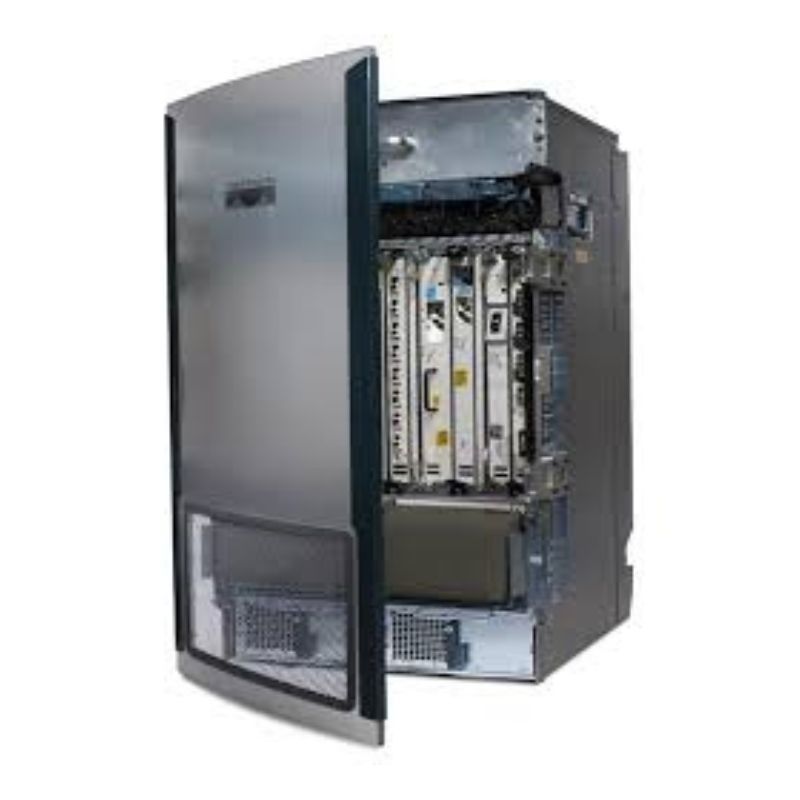

12000/4, Cisco 12000 Router, 4-slot chassis
Brand: Cisco · SKU: 12000/4 · MPN: 12000/4 · Category: Networking
Request for Quote
In Stock • 10 units
Cisco 12000 Router 12000/4 Cisco 12000 4-slot Router
Specifications
| Model | 12000/4 |
|---|---|
| Shock | Operating (halfsine): 5g (11 m/sec) Nonoperating (trapezoidal pulse): 15g (11 m/sec) [Footnote 12] |
| Weight | 68.0 kg |
| Vibration | Operating (sinusoidal): 3–100 Hz @ 0.15 gpk Random: 2.5–100 Hz @ 0.33 grms Storage (sinusoidal): 10–100 Hz @ 0.8 gpk Random: 2.5–100 Hz @ 1.05 grms [Footnote 13] |
| Compliance | Safety: UL/CSA/IEC/EN 60950-1, AS/NZS 60950, EN60825/IEC60825, FDA-CFR Emissions: FCC/CISPR/ICES/EN55022/VCCI/AS/NZS/BSMI Class A, IEC/EN61000-3-2/3 Immunity: IEC/EN61000-4-2/3/4/5/6/11 NEBS: GR-1089-CORE, GR-63-CORE, SR-3580 Level 3 ETSI/EN: EN300386, EN55022, EN55024, EN50082-1, EN300132-2 |
| Reliability | Fabric card redundancy 4:1 CSC redundancy 1:1 Power supply redundancy (1:1 for DC; AC load balancing) Blower redundancy 1:1 Route processor redundancy 1:1 Alarm card redundancy 1:1 Dual homing through line cards Supports APS ASICs |
| Connectivity | Packet over SONET/SDH (POS), Ethernet, ATM, copper (DS-3/E3), Channelized (CT3, ChOC-3/CHSTM1, ChOC-12/CHSTM4, ChOC-48/CHSTM16) |
| Slot Capacity | 4 slots |
| Visual Alarms | Visual alarms for critical/major/minor states on CSCs, SFCs, and system alarm boards |
| AC Input Power | Total AC input power: 1310 VA Rated input voltage: 100–120 VAC or 200–240 VAC nominal (range: 85–264 VAC) [Footnote 9] Rated input line frequency: 50–60 Hz nominal (range: 47–63 Hz) [Footnote 9] Input current rating: 12 A @ 100–240 VRMS per line cord (max) [Footnote 9] Source AC service requirement: 15 A North America; 10 A international [Footnote 9] |
| Acoustic Noise | 70 dBa maximum @ 77 °F (25 °C) |
| DC Input Power | Total DC input power: 1290 W Rated input voltage: –48 VDC nominal in North America –60 VDC nominal in the European Community (range: –40.5 to –72 VDC) [Footnote 9] Input current rating: 35 A per feed (max) @ 40.5 VDC [Footnote 9] Source DC requirement: Sufficient to supply the rated input current. Local codes apply. [Footnote 9] |
| Chassis per Rack | Eight |
| Heat Dissipation | AC (max): 1310 W @ 4470 Btu/hr DC (max): 1290 W @ 4401 Btu/hr |
| Chassis Dimensions | Height: 8.75 in (22.23 cm) Width: 17.38 in (44.15 cm) Width: 19 in (48.24 cm) [Footnote 3] Depth: 27.5 in (69.85 cm) Depth: 30.75 in (78.1 cm) [Footnote 4] |
| Operating Altitude | 0–10,000 ft (0–3000 m) [Footnote 14] |
| Operating Humidity | 5–90% noncondensing |
| Hardware Components | 2 DC power supplies or 2 AC supplies 1 performance router processor 4 line-card slots with 3 line cards and 1 route processor or 2 line cards and 2 route processors (1:1 redundant) 1 consolidated switch fabric, clock scheduler, and alarm card Air filter 1 blower assembly 1 cable-management tray Country-specific power cords |
| Software Components | Cisco IOS XR or Cisco IOS Software Operating System Cisco Express Forwarding for distributed packet forwarding |
| Supported Protocols | IPv4, MPLS, BGPv4, IS-IS, OSPFv2.0, RIPv2, IGMP, DVMRP, PIM DX/SX |
| Compatible Line Cards | Cisco 12004: Line cards that support 2.5 Gbps capability Cisco 12404: Line cards that support 2.5 or 10 Gbps capability |
| Management Interfaces | Two serial ports (console/auxiliary) + one 10/100 Ethernet port on PRP |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Non-Operating Altitude | 0–15,000 ft (0–4570 m) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this 12000/4, Cisco 12000 Router, 4-slot chassis (12000/4) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This 12000/4, Cisco 12000 Router, 4-slot chassis includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the 12000/4, Cisco 12000 Router, 4-slot chassis compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 12000/4.
