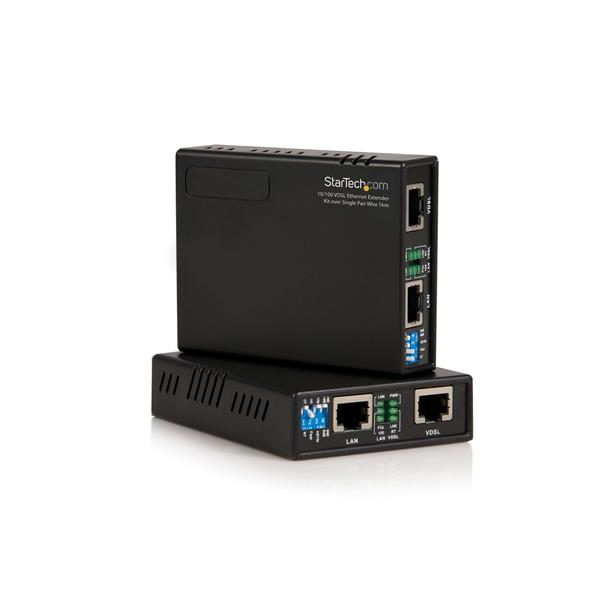

StarTech.com 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km

Brand: StarTech.com · SKU: 110VDSLEXTEU · MPN: 110VDSLEXTEU · Category: Components

StarTech.com 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km
Request for Quote
Backorder

StarTech.com 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km, Network transmitter, 1000 m, 100 Mbit/s, 10/100Base-T(X), IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Black. StarTech.com 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km (part number 110VDSLEXTEU) is an enterprise components product available from Server Tech Central. Key specifications include type Network transmitter, depth 95 mm, width 72 mm, height 22 mm, weight 90 g, package depth 137 mm, package width 148 mm, auto mdix ieee Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

TypeNetwork transmitter
Depth95 mm
Width72 mm
Height22 mm
Weight90 g
Package depth137 mm
Package width148 mm
Auto MDIX IEEEYes
Output current1 A
Output voltage12 V
Package height95 mm
Product colourBlack
AC input voltage230 V
AC input frequency50 - 60 Hz
Cabling technology10/100Base-T(X)
Data transfer rate100 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
External power adapterYes
Maximum transfer distance1000 m
Storage temperature (T-T)0 - 70 °C
Ethernet LAN (RJ-45) ports2
Harmonized System (HS) code85176990
Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)10 - 90%
Warranty3-Year Warranty
Weight90 g
Dimensions72 mm x 95 mm x 22 mm

Product Description

Extend your 10/100Mbps network by up to 1km over Ethernet or RJ11 phone lines The 110VDSLEXTEU VDSL Ethernet extender kit allows you to span a 10/100 network over extremely long distances (up to 1km) while still maintaining high-speed network connectivity. The device allows you to run the connection over standard RJ45 cabling, existing RJ11 phone lines, or any other set of single pair wires. The VDSL (VDSL2) kit is simple to install and provides an out-of-the-box solution as both the Ethernet-VDSL extender and receiver units are included. A perfect solution for a broad range of applications including connecting isolated user stations within the same building or between separate buildings, or overcoming infrastructure obstacles and distances (e.g. older stone/concrete architecture) where new wiring or wireless may be impossible. The VDSL Ethernet LAN Extender kit helps to eliminate expense by allowing video streaming and data to share the same telephone pair without interference. The 110VDSLEXT requires only a single pair of wires to function, while offering the ability to use multiple sets of the devices to create several simultaneous connections to your remote building. In these multiple set configurations, you have the ability to use up to 4 sets over a single Cat5e or Cat6 cable which can be used as separate LAN (or VLAN) connections, or bridged into a trunk line for additional speed/bandwidth over long distances (up to two sets only over standard Cat5). Solution Diagrams: Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Provides high speed Ethernet extension over copper telephone line or other existing two pair wiring enabling network connectivity to remote locations up to 1km away - Allows network connectivity in buildings made of stone/concrete, or heritage buildings where new Ethernet cabling or wireless are impossible - Simple Plug and play installation with no software or driver installation for a hassle-free setup

Key Features

StarTech.com 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km. Type: Network transmitter, Maximum transfer distance: 1000 m, Data transfer rate: 100 Mbit/s. Cabling technology: 10/100Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Product colour: Black. AC input voltage: 230 V, AC input frequency: 50 - 60 Hz, Output voltage: 12 V. Width: 72 mm, Depth: 95 mm, Height: 22 mm

Frequently Asked Questions

Is this product genuine OEM?

Yes, this StarTech.com 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km (110VDSLEXTEU) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This StarTech.com 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the StarTech.com 10/100 VDSL2 Ethernet Extender Kit over Single Pair Wire – 1km compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 110VDSLEXTEU.
