Brand: Dell · SKU: 0X9M3X · MPN: 0X9M3X · Category: Components

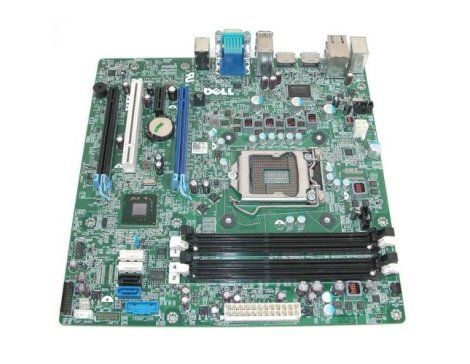

The Dell Precision T1650 Workstation Motherboard (Part Nos: 0X9M3X, 0C3YXR) is a Micro-ATX system board designed for demanding professional applications. It features the Intel C216 Chipset and an LGA 1155 CPU socket. It supports Intel Xeon and Core i7 processors, as well as Core i5, Core i3, and Pentium Series CPUs. The board has 4 DIMM slots supporting up to 32GB of 1600MHz ECC DDR3 RAM or 16GB non-ECC DDR3 RAM. Expansion includes one PCI Express x16 Gen 3 slot, one PCIe x16 Gen 2 wired x4 slot, one PCIe x1 slot, and one PCI 32bit/33MHz slot. It includes integrated Gigabit Ethernet, six USB ports (including 2 USB 3.0 ports in the rear and 2 in the front), DisplayPort, VGA, PS/2, a serial port, and audio ports. It supports SATA 6Gb/s and RAID 0/1/5/10 configurations.
| Chipset | Intel C216 |
|---|---|
| Ethernet | Gigabit Ethernet |
| CPU Socket | LGA 1155 |
| Max Memory | Up to 32GB 1600MHz ECC or 16GB non-ECC DDR3 |
| Form Factor | Micro-ATX |
| Video Ports | DisplayPort, VGA |
| Memory Slots | 4 DIMM slots |
| USB 3.0 Ports | 4 total (2 front, 2 rear) |
| PCIe x16 Slots | 1 (Gen 3) |
| Compatible Model | Dell Precision T1650 |
| Warranty | 3 Months Hardware Warranty (from one source, standard warranty may vary). |
| Weight | 8.00 LBS |
| Dimensions | Mid-Tower Chassis Dimensions: (HxWxD) 14.17" x 6.89" x 17.13" (This likely refers to the case, not the motherboard itself). |
This is the system board (motherboard) for the Dell Precision T1650 Workstation. It supports 3rd Generation Intel Core Processors and Intel Xeon E3-1200v2 Family processors. It is built for professional-grade performance, supporting ECC memory and various professional graphics options.
Yes, this Dell Precision T1650 Workstation Motherboard (0X9M3X) is 100% genuine Dell hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Dell Precision T1650 Workstation Motherboard includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 0X9M3X.
