Brand: Dell/Brocade · SKU: 0U510F · MPN: 0U510F · Category: Networking

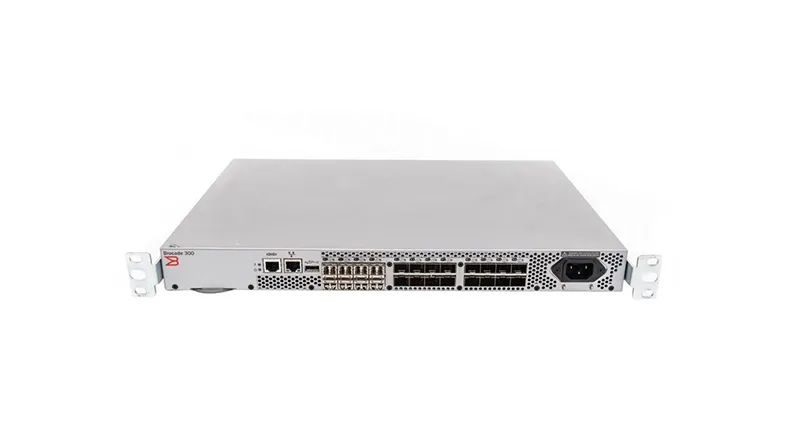

The 0U510F is a Dell Brocade 300 24-Port Fibre Channel Network Switch, which is a Brocade 300 series Fibre Channel Switch. It features 24 universal Fibre Channel ports (E, F, and FL) supporting 1, 2, 4, and 8 Gbit/s line speeds, with full duplex and auto-sensing capabilities. It supports ISL Trunking up to eight 8 Gbit/s ports per trunk, providing an aggregate bandwidth of 408 Gbit/s end-to-end. Fabric latency is approximately 700 nanoseconds with cut-through routing at 8 Gbit/s. The enclosure is 1.0U, 19-in. EIA-compliant with back-to-front airflow. The system weight is 4.2 kg without SFPs. Power consumption is nominally 48 Watts, with a maximum draw of 57 Watts, supporting input voltage from 85 to 264 VAC, 47 to 63 Hz. Management is supported via SSH, Telnet, HTTPS/SSL, RADIUS, SNMP v3, Web Tools, Fabric Manager, and EFCM. It has 10/100 Ethernet, serial (RJ-45), and USB ports for management access. Compliance includes UL 60950-1: 2003, CSA 60950-1-03, Nemko EN60950:2000, TUV EN60950:
| Ports | 24 universal (E, F, and FL) Fibre Channel ports |
|---|---|
| Latency | ~700 nanoseconds (cut-through routing at 8 Gbit/s) |
| Port Speed | 1, 2, 4, and 8 Gbit/s (auto-sensing) |
| Form Factor | 1.0U, 19-in. EIA-compliant |
| Power Input | 85 to 264 VAC, 47 to 63 Hz |
| ISL Trunking | Up to eight 8 Gbit/s ports per trunk (up to 68 Gbit/s per trunk) |
| Part Number (Dell) | 0U510F |
| Aggregate Bandwidth | 408 Gbit/s end to end |
| Max Power Consumption | 57 Watts |
| Warranty | Often comes with a 1-year warranty when purchased from resellers, especially as a refurbished item. |
| Weight | 4.2 kg (no SFP) |
| Dimensions | Width: 42.88 cm, Height: 4.29 cm, Depth: 30.66 cm |
The Brocade 300 switch, identified by Dell part number 0U510F, is an 8Gb Fibre Channel switch designed for small to medium enterprises, offering 24 universal ports. It supports high-speed connectivity up to 8Gbps and features full fabric architecture scalability, along with essential fabric services like Name Server and Zoning. It is often sourced as a refurbished unit.
Yes, this Dell Brocade 300 8Gb 24-Ports Fiber Channel Switch (0U510F) is 100% genuine Dell/Brocade hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Dell Brocade 300 8Gb 24-Ports Fiber Channel Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 0U510F.
