Brand: Broadcom · SKU: 05-50134-00 · MPN: 05-50134-00 · Category: Components

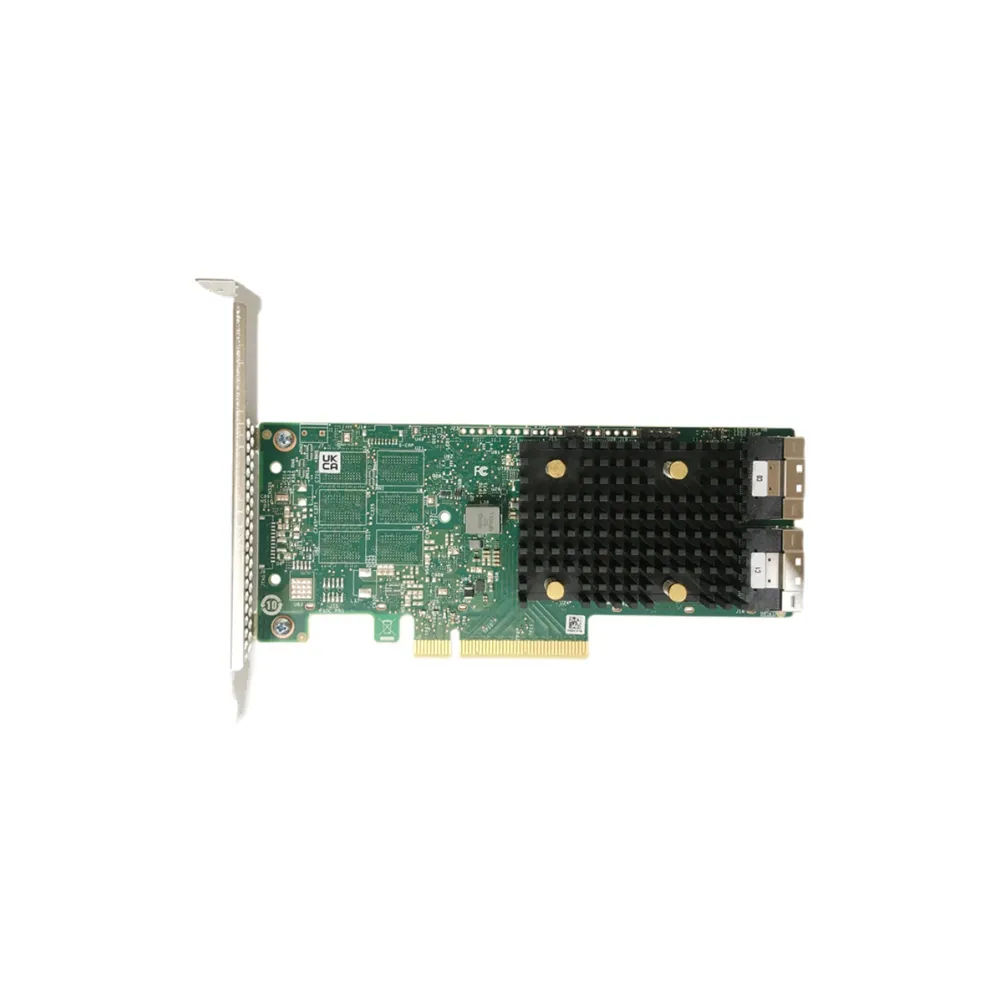

The Broadcom HBA 9500-16i is a high-port Tri-Mode, PCIe Gen 4.0 Host Bus Adapter (HBA) designed for enterprise data centers requiring maximum performance and flexibility. Based on the SAS3816 I/O controller, it supports 16 internal ports and provides seamless connectivity for SAS, SATA, and NVMe storage devices. With PCIe 4.0 host and storage interfaces, it delivers double the bandwidth and IOPS performance of previous generations. The adapter is Universal Bay Management (UBM) ready and supports up to 1024 SAS/SATA devices or 32 NVMe devices, making it an ideal solution for large-scale storage arrays and high-end server environments.
| MTBF | > 5,000,000 hours at 40° C |
|---|---|
| Host Interface | PCI Express 4.0 x8 |
| I/O Controller | SAS3816 |
| Devices Supported | SAS/SATA: 1024; NVMe: 32 |
| Power Consumption | 8.9W (Typical) |
| Data Transfer Rates | 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| Internal Connectors | 2 x8 SFF-8654 (SlimSAS) |
| Operating Temperature | 0°C to 55°C |
| Warranty | 3 Years Limited Warranty |
| Weight | 2.0 lbs |
| Dimensions | 6.127 in x 2.712 in (155.65 mm x 68.90 mm) |
Designed for demanding enterprise applications, the 9500-16i HBA enables high-speed data access and robust storage scalability. It supports hardware secure boot and advanced management utilities like LSI Storage Authority (LSA) and StorCLI.
Yes, this Broadcom SAS 9500-16i Tri-Mode Storage Adapter (05-50134-00) is 100% genuine Broadcom hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Broadcom SAS 9500-16i Tri-Mode Storage Adapter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 05-50134-00.
