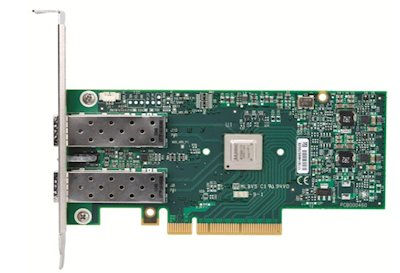

Lenovo 00D9690 network card Internal Fiber 10000 Mbit/s
Brand: Lenovo · SKU: 00D9690 · MPN: 00D9690 · Category: Components
Lenovo 00D9690, Internal, Wired, PCI Express, Fiber, 10000 Mbit/s, Green. Lenovo 00D9690 network card Internal Fiber 10000 Mbit/s (part number 00D9690) is an enterprise network cards product available from Server Tech Central. Key specifications include internal Yes, interface Fiber, jumbo frames 9600, vlan tagging Yes, iscsi support Yes, host interface PCI Express, product colour Green, quantity per pack 1 pc(s). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Internal | Yes |
|---|---|
| Interface | Fiber |
| Jumbo frames | 9600 |
| VLAN tagging | Yes |
| Certification | EN55022 EN55024 EN60950-1 EN 61000-3-2 EN 61000-3-3 IEC 60950-1 FCC Part 15 Class A UL 60950-1 CSA C22.2 60950-1-07 VCCI NZ AS3548 / C-tick RRL for MIC (KCC) BSMI (EMC) IECS-003:2004 Issue 4 |
| iSCSI support | Yes |
| Host interface | PCI Express |
| Product colour | Green |
| Quantity per pack | 1 pc(s) |
| Operating altitude | 0 - 2133 m |
| Compatible products | x3100 M5, x3250 M5, x3500 M5, x3550 M5, x3650 M5, x3850 X6/x3950 X6, nx360 M5 |
| Fiber ports quantity | 2 |
| Flow control support | Yes |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ba |
| PCI Card form factor | Full-height (low-profile) |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Maximum data transfer rate | 10000 Mbit/s |
| Operating temperature (T-T) | 0 - 55 °C |
| Compatible operating systems | Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 R2 Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE LINUX Enterprise Server 10 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 12 VMware vSphere 5.0 (ESXi)* VMware vSphere 5.1 (ESXi)* VMware vSphere 5.5 (ESXi)* VMware vSphere 6.0 (ESXi)* |
| Operating relative humidity (H-H) | 20 - 80% |
| Warranty | 3-Year Warranty |
Product Description
High-performance computing (HPC) solutions require high bandwidth, low latency components with CPU offloads to get the highest server efficiency and application productivity. The Mellanox ConnectX-3 and ConnectX-3 Pro network adapters for System x® servers deliver the I/O performance that meets these requirements. Mellanox's ConnectX-3 and ConnectX-3 Pro ASIC delivers low latency, high bandwidth, and computing efficiency for performance-driven server applications. Efficient computing is achieved by offloading from the CPU routine activities, which makes more processor power available for the application. Network protocol processing and data movement impacts, such as InfiniBand RDMA and Send/Receive semantics, are completed in the adapter without CPU intervention. RDMA support extends to virtual servers when SR-IOV is enabled. Mellanox's ConnectX-3 advanced acceleration technology enables higher cluster efficiency and scalability of up to tens of thousands of nodes.
Key Features
Lenovo 00D9690. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s. Product colour: Green
